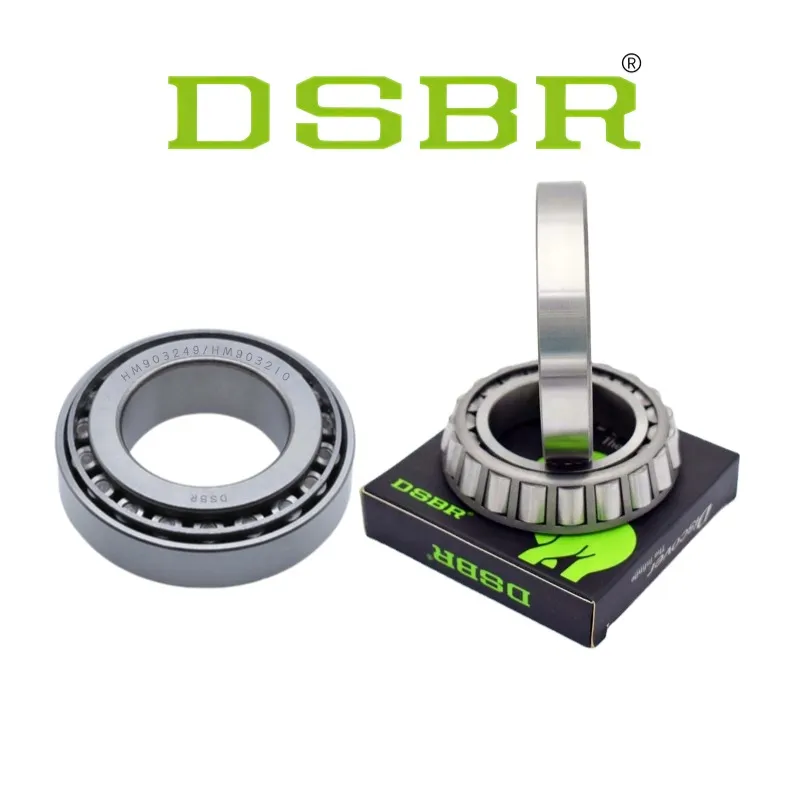

HM903210 Inch Tapered Roller Bearings

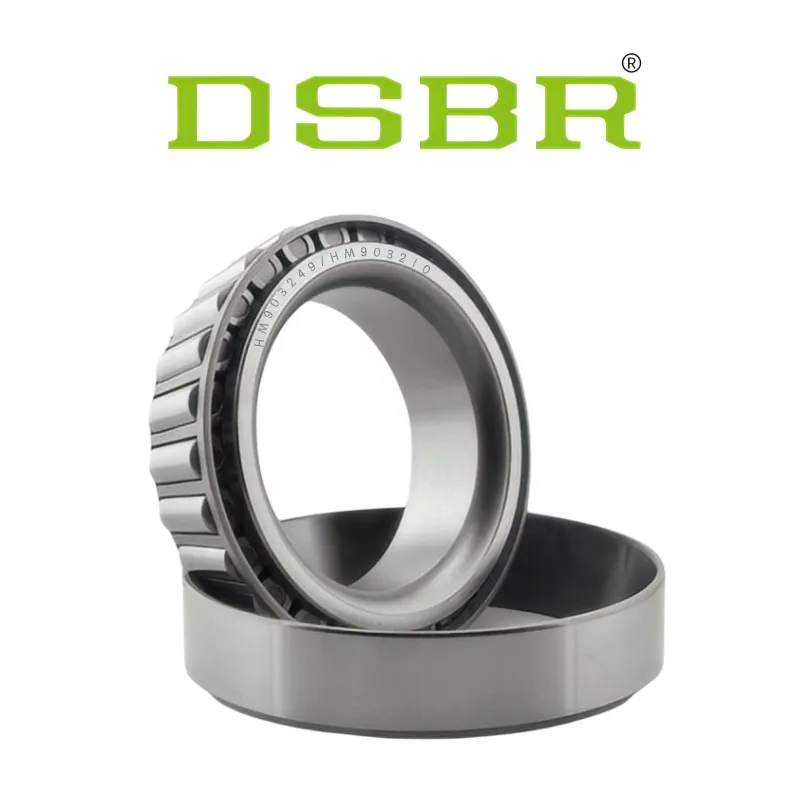

HM903210 Inch Tapered Roller Bearings
HM903210 Inch Tapered Roller Bearings
Diagram of DSBR Inch Tapered Roller Bearings
Diagram of DSBR Inch Tapered Roller Bearings

HM903249/HM903210 Inch Tapered Roller Bearings

The HM903249/HM903210 tapered roller bearing is built to handle heavy-duty operations in trucks, trailers, and agricultural machinery. Its inch-series design ensures compatibility and reliable support for combined axial and radial loads. Manufactured from alloy steel and precision-machined raceways, it minimizes friction and enhances operational efficiency. The bearing’s separable design facilitates maintenance and quick replacement, reducing downtime. DSBR ensures quality through advanced production lines and strict inspection standards, making this bearing a trusted solution for OEMs and aftermarket distributors seeking durability and cost-effectiveness.

Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of HM903249/HM903210 Inch Tapered Roller Bearings

Specifications
SeriesHM903200
Cone Part NumberHM903249
Cup Part NumberHM903210
Design UnitInch
Cage MaterialStamped Steel
Related Assembly Number(s)EA24-900CA
HM903249-90012
HM903249-90016
Dimensions
d - Bore1 3/4 in
44.45 mm
D - Cup Outer Diameter3.7500 in
95.250 mm
B - Cone Width1.1250 in
28.575 mm
C - Cup Width0.8750 in
22.225 mm
T - Bearing Width1.2188 in
30.958 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius10.14 in
3.560 mm
r - Cup Backface "To Clear" Radius20.030 in
0.76 mm
da - Cone Frontface Backing Diameter2.13 in
54 mm
db - Cone Backface Backing Diameter2.56 in
65 mm
Da - Cup Frontface Backing Diameter3.62 in
91.90 mm
Db - Cup Backface Backing Diameter3.19 in
81.03 mm
Ab - Cage-Cone Frontface Clearance0.11 in
2.8 mm
Aa - Cage-Cone Backface Clearance0.12 in
3 mm
a - Effective Center Location30.02 in
0.5 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)47950 lbf
35400 N
C1 - Dynamic Radial Rating (1 million revolutions)530700 lbf
136000 N
C0 - Static Radial Rating29700 lbf
132000 N
Ca90- Dynamic Thrust Rating (90 million revolutions)610100 lbf
44800 N
Factors
K - Factor70.79
e - ISO Factor80.74
Y - ISO Factor90.81
G1 - Heat Generation Factor (Roller-Raceway)33.7
G2 - Heat Generation Factor (Rib-Roller End)9.91
Cg - Geometry Factor100.101
