30218 7218E Metric Tapered Roller Bearings
30218 7218E Tapered Roller Bearings
30218 7218E Roller Bearings
diagram of dsbr metric tapered roller bearings
diagram of dsbr metric tapered roller bearings (2)

30218 7218E Metric Tapered Roller Bearings

30218 7218E single row tapered roller bearings are engineered to support combined radial and thrust loads with minimal rolling resistance. The inner assembly—comprising the raceway, rollers, and cage—is separable from the outer ring, allowing for flexible installation, simplified disassembly, and easy maintenance. When used in matched pairs with preload, these bearings deliver high rigidity and precise shaft positioning.

Engineered for durability, the 30218 7218E tapered bearing operates reliably under vibration and shock. Ideal for construction axles and cranes.Ideal for heavy-duty applications, they offer:


  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of 30218 7218E Metric Tapered Roller Bearings

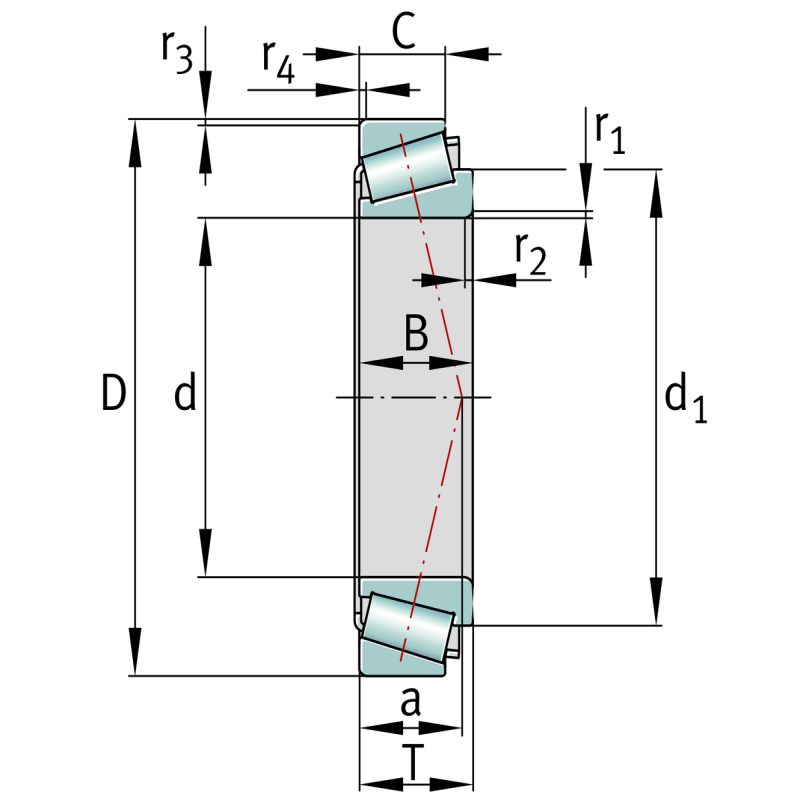

dimensions of 30204 7204e metric tapered roller bearings







Dimensions
d90 mmBore diameter
D160 mmOutside diameter
T32.5 mmTotal width
d1≈120.38 mmShoulder diameter of inner ring
B30 mmWidth of inner ring
C26 mmWidth of outer ring
r1,2min.2.5 mmChamfer dimension of inner ring
r3,4min.2 mmChamfer dimension of outer ring
a31.033 mmDistance side face to pressure point

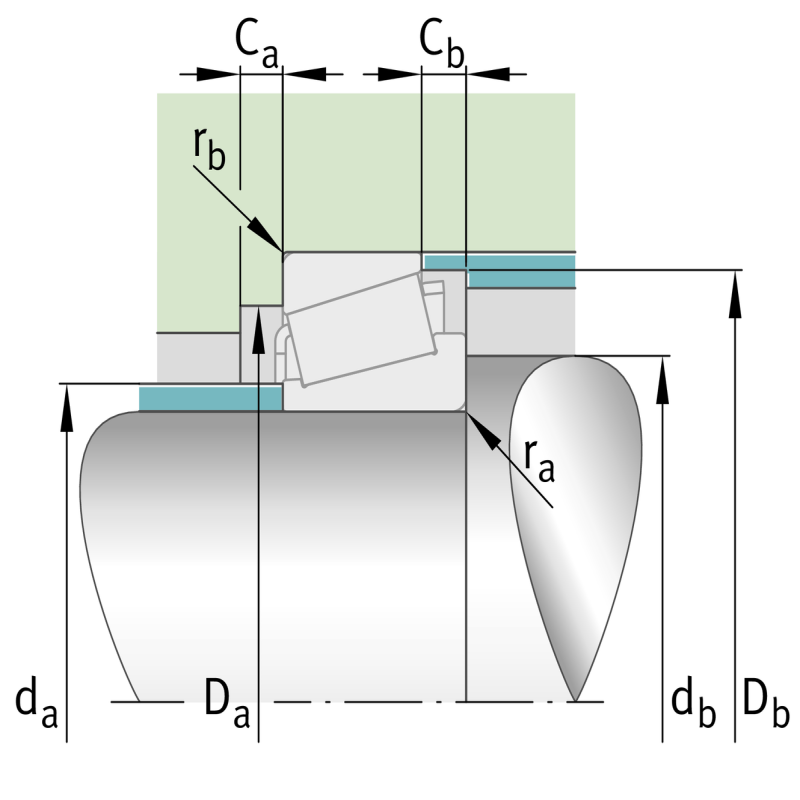

abutment dimensions of 30204 7204e metric tapered roller bearings


Abutment dimensions
damax.104 mmDiameter of shaft abutment
dbmin.102 mmDiameter of shaft abutment
Damin.140 mmDiameter of housing abutment
Damax.150 mmDiameter of housing abutment
Dbmin.150 mmDiameter of housing abutment
Camin.5 mmMinimum width of space required in housing on large side face
Cbmin.6.5 mmMinimum width of space required in housing on small side face
ramax.2.5 mmRadius of shaft fillet
rbmax.2 mmRadius of housing fillet
