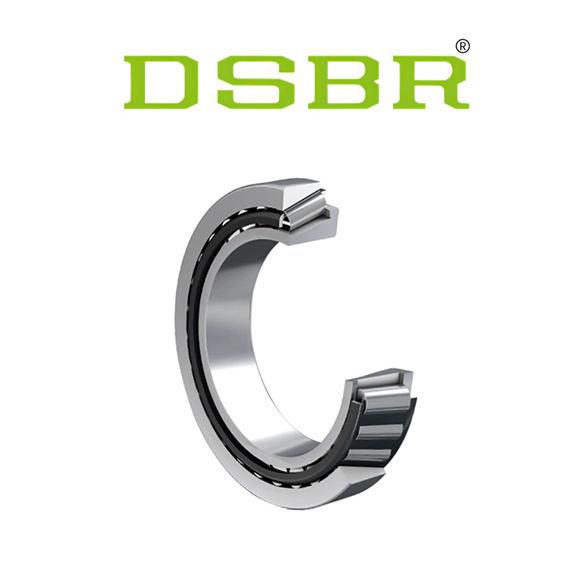

30204 7204E Metric Tapered Roller Bearings

30204 7204E single row tapered roller bearings are engineered to support combined radial and thrust loads with minimal rolling resistance. The inner assembly—comprising the raceway, rollers, and cage—is separable from the outer ring, allowing for flexible installation, simplified disassembly, and easy maintenance. When used in matched pairs with preload, these bearings deliver high rigidity and precise shaft positioning.

The 30204 7204E tapered roller bearing is engineered for applications requiring combined load performance. Its compact size, low friction, and long lifespan make it perfect for light-duty gearboxes, vehicle wheels, and trailer systems.

Ideal for heavy-duty applications, they offer:


  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of 30204 7204E Metric Tapered Roller Bearings

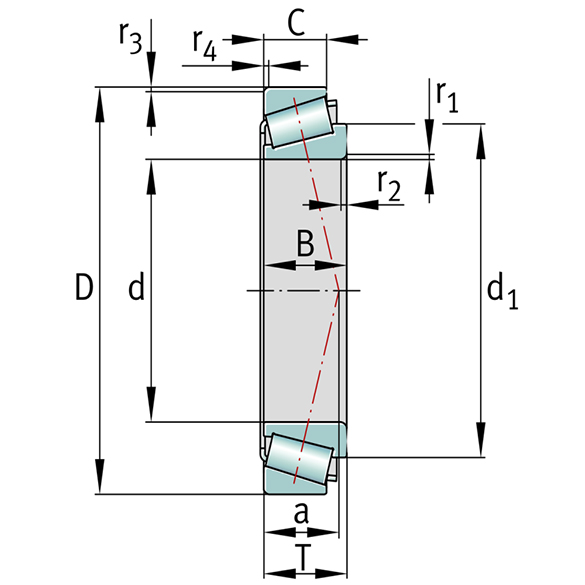

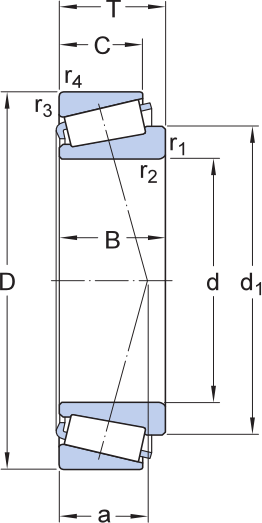

dimensions of 30204 7204e metric tapered roller bearings



Dimensions
Performance
d0.7874 inBore diameterBasic dynamic load rating34.1 kN
D1.8504 inOutside diameterBasic static load rating28 kN
T0.6004 inTotal widthReference speed12 000 r/min
d1≈1.3268 inShoulder diameter of inner ringLimiting speed15 000 r/min
B0.5512 inWidth of inner ring

C0.4724 inWidth of outer ring

r1,2min.0.0394 inChamfer dimension of inner ring

r3,4min.0.0394 inChamfer dimension of outer ring

a0.4342 inDistance side face to pressure point

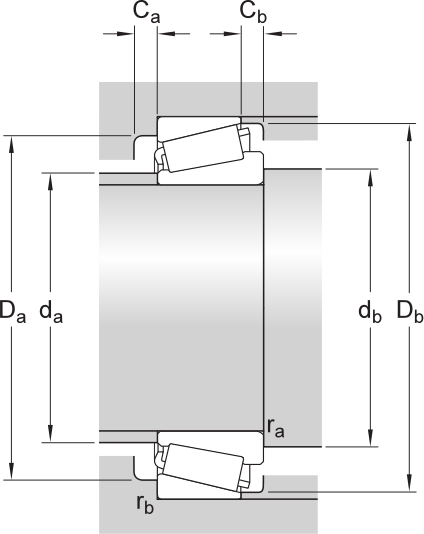

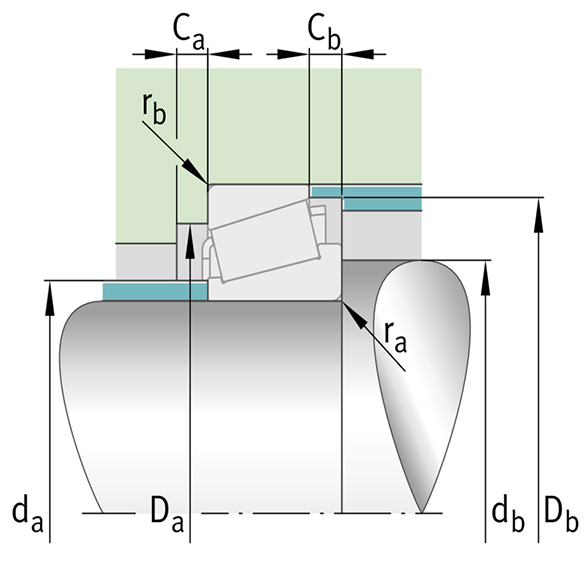

abutment dimensions of 30204 7204e metric tapered roller bearings


Abutment dimensions
damax.28 mmDiameter of shaft abutment
dbmin.26.5 mmDiameter of shaft abutment
Damin.40 mmDiameter of housing abutment
Damax.41.5 mmDiameter of housing abutment
Dbmin.43 mmDiameter of housing abutment
Camin.2 mmMinimum width of space required in housing on large side face
Cbmin.3 mmMinimum width of space required in housing on small side face
ramax.1 mmRadius of shaft fillet
rbmax.1 mmRadius of housing fillet
