DAC25520040 Double Raw Angular Contact Ball Bearings
DAC25520040 Double Raw Angular Contact Ball Bearings
DAC25520040 Double Raw Angular Contact Ball Bearings

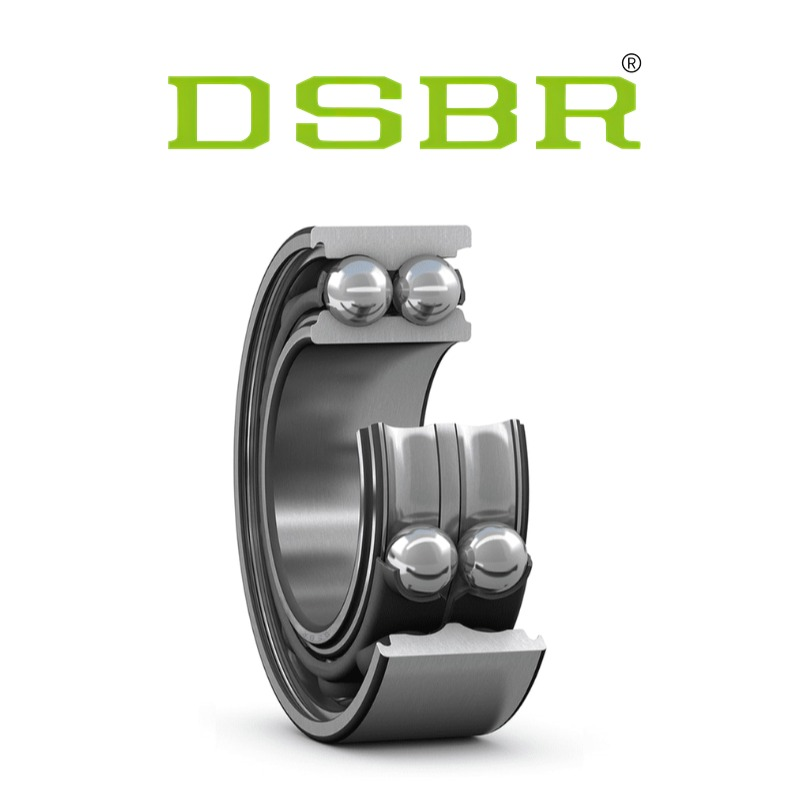

diagram of dsbr ball bearings
diagram of dsbr ball bearings
diagram of dsbr ball bearings

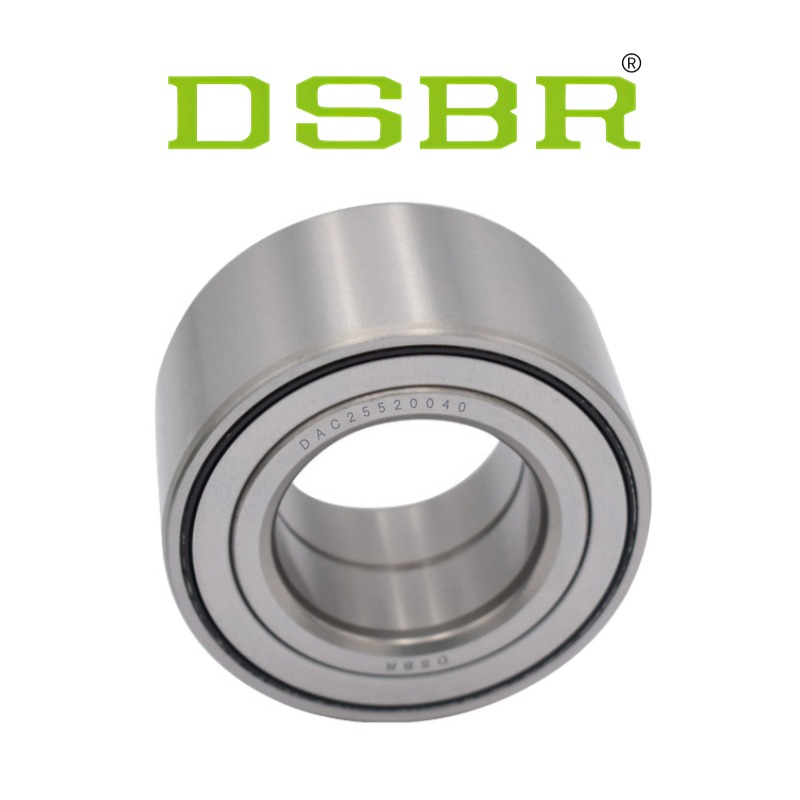

DAC25520040 Double Row Angular Contact Ball Bearings

DAC25520040 is a sealed double-row angular contact bearing primarily used in vehicle front wheels. Its compact design combines load handling with dustproof and waterproof features, ensuring extended lifespan and low maintenance. DSBR utilizes CNC machining, strict dimensional tolerance control, and optimized grease filling to guarantee top-tier automotive compatibility and reliability in all driving environments.

Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of DAC25520040 Double Row Angular Contact Ball Bearings





Wheel hub bearing
DAC25520040
Item NumberFC40857 【SNR】
d25 mmBore diameter
D52 mmOutside diameter
B40 mmWidth of inner ring
Mass0.35 kg/
PackageIndustrial Packaging, Individual Packaging



Product Properties

BoreC - Cylindrical Bore
Seal

2RS - Rubber Seal on Two Sides

Cage Type

S - Steel or Standard Cage

External Modification

No External Modification

Radial Internal Play

Cn Normal Internal Play

Precision

Standard Precision

LubricationStandard Lubrication
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ringStandard
