11 Inch Tapered Roller Bearings
11 Inch Tapered Roller Bearings
11 Inch Tapered Roller Bearings
Diagram of DSBR Inch Tapered Roller Bearings
Diagram of DSBR Inch Tapered Roller Bearings

HM212047/11 Inch Tapered Roller Bearings

The HM212047/11 tapered roller bearing is part of DSBR’s premium inch-series bearing lineup, engineered for trucks, trailers, and industrial machinery. Manufactured from high-grade bearing steel and precision-ground for smooth rotation, this model delivers superior resistance to wear and extended operational life. Its cone and cup are fully separable, making installation and inspection easier while minimizing maintenance costs. DSBR’s state-of-the-art production technology and rigorous quality control ensure OEM-standard performance, making this bearing ideal for distributors and equipment manufacturers worldwide.


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of HM212047/11 Inch Tapered Roller Bearings

Specifications
SeriesHM212000
Cone Part NumberHM212047
Cup Part NumberHM212011
Design UnitInch
Cage MaterialStamped Steel
Related Assembly Number(s)HM212047-902A5
Dimensions
d - Bore2 1/2 in
63.500 mm
D - Cup Outer Diameter4 13/16 in
122.238 mm
B - Cone Width1.5100 in
38.354 mm
C - Cup Width1.1700 in
29.718 mm
T - Bearing Width1.5000 in
38.100 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius10.280 in
7.110 mm
r - Cup Backface "To Clear" Radius20.130 in
3.30 mm
da - Cone Frontface Backing Diameter2.87 in
73 mm
db - Cone Backface Backing Diameter3.43 in
87 mm
Da - Cup Frontface Backing Diameter4.60 in
116.10 mm
Db - Cup Backface Backing Diameter4.25 in
107.95 mm
Ab - Cage-Cone Frontface Clearance0.15 in
3.8 mm
Aa - Cage-Cone Backface Clearance0.07 in
1.8 mm
a - Effective Center Location3-0.43 in
-10.9 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)415600 lbf
69200 N
C1 - Dynamic Radial Rating (1 million revolutions)560000 lbf
267000 N
C0 - Static Radial Rating62700 lbf
279000 N
Ca90- Dynamic Thrust Rating (90 million revolutions)68990 lbf
40000 N
Factors
K - Factor71.73
e - ISO Factor80.34
Y - ISO Factor91.78
G1 - Heat Generation Factor (Roller-Raceway)92.2
G2 - Heat Generation Factor (Rib-Roller End)18.1
Cg - Geometry Factor100.0759


Contact DSBR for More Information
Contact DSBR for More Information
2010
SINCE
9
PATENTS
120
EXPERT WORKERS
40
EXPORT COUNTRIES
Related （IV）Inch Tapered Roller Bearings——Inner Diameter 52.388-75mm
JLM813049/JLM813010 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
JLM813049/JLM813010 Inch Tapered Roller Bearings
HM807049/HM807010 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
HM807049/HM807010 Inch Tapered Roller Bearings
29590/29520 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
29590/29520 Inch Tapered Roller Bearings
29685/29620 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
29685/29620 Inch Tapered Roller Bearings
HM212049/10 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
HM212049/10 Inch Tapered Roller Bearings
462/453X Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
462/453X Inch Tapered Roller Bearings
395A/394A Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
395A/394A Inch Tapered Roller Bearings
39590/39520 Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
More
39590/39520 Inch Tapered Roller Bearings

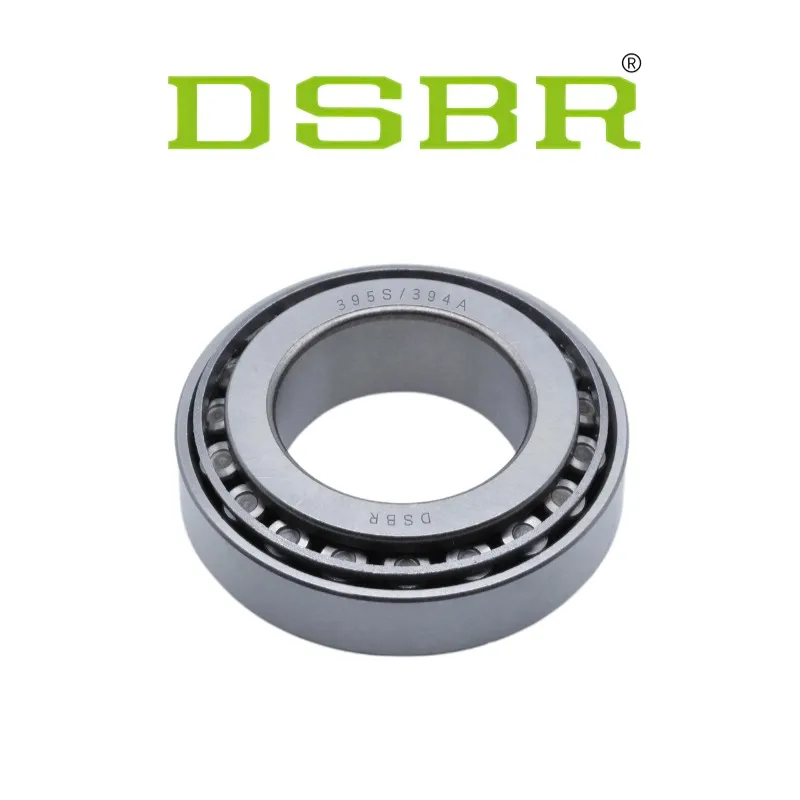

395S/394A Inch Tapered Roller Bearings Provide Professional High-quality Bearings for Over 70 Countries
