LM67048/LM67010 Inch Tapered Roller Bearings

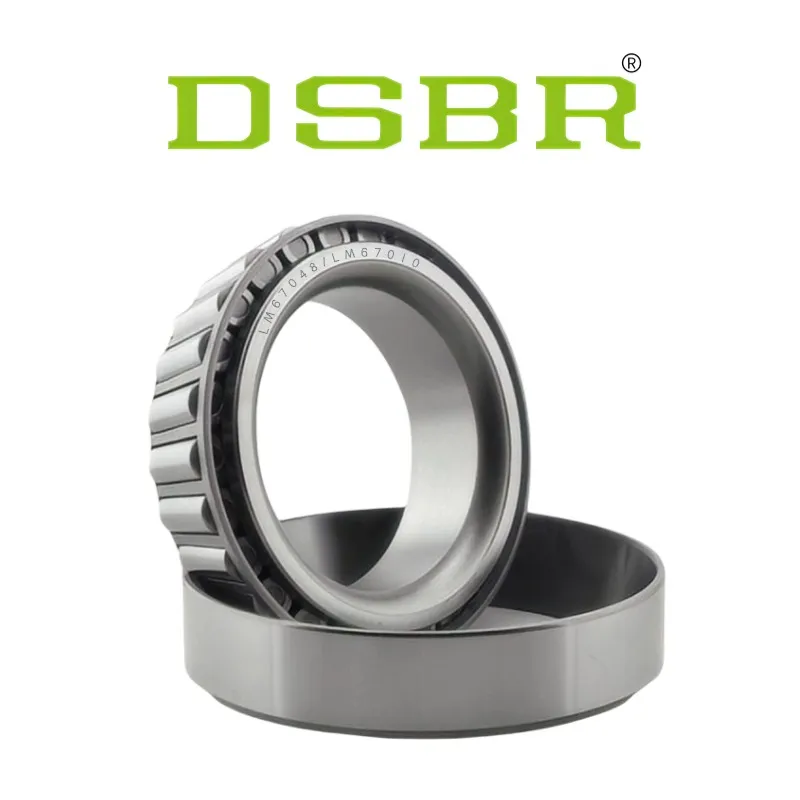

The LM67048/LM67010 bearing set is widely used in automotive wheel hubs, trailers, and agricultural machinery. Featuring tapered roller geometry, it provides excellent radial and axial load support. The high-quality bearing steel and advanced heat treatment guarantee resistance to wear and shock, ensuring long service life. With a bore size of 31.75 mm, this bearing is engineered for precise alignment and low-friction operation. Its separable components make installation, inspection, and replacement easy, reducing downtime. Backed by DSBR’s strict factory inspection, this model offers reliability, affordability, and compatibility with multiple OEM systems.

Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of LM67048/LM67010 Inch Tapered Roller Bearings



Specifications
Cone Part NumberLM67048
Cup Part NumberLM67010
Inner Spacer Part NumberK106817R
Outer Spacer Part NumberK106610R
Design UnitInch
Dimensions
d - Bore1 1/4 in
31.75 mm
D - Cup Outer Diameter2.3280 in
59.131 mm
T - Width1.406 in
35.712 mm
C - Width1.0860 in
27.584 mm
Snap Ring Diameter2.41 in
61.11 mm
Snap Ring Width0.16 in
3.96 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius10.14 in
3.600 mm
r - Cup Backface "To Clear" Radius20.050 in
1.27 mm
db - Cone Backface Backing Diameter1.67 in
42.5 mm
Da - Cup Frontface Backing Diameter2.24 in
55.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)2720 lbf
12100 N
C1 - Dynamic Radial Rating (1 million revolutions)318300 lbf
81300 N
Ca90- Dynamic Thrust Rating (90 million revolutions)41920 lbf
8550 N
C90(2)- Dynamic Radial Rating (Two-Row, 90 million revolutions)54740 lbf
21100 N
Factors
K - Factor61.42
e - ISO Factor70.41
Y1 - ISO Factor81.64
Y2 - ISO Factor92.44
