DAC35770442 Double Raw Angular Contact Ball Bearings
DAC35770442 Double Raw Angular Contact Ball Bearings
DAC35770442 Double Raw Angular Contact Ball Bearings

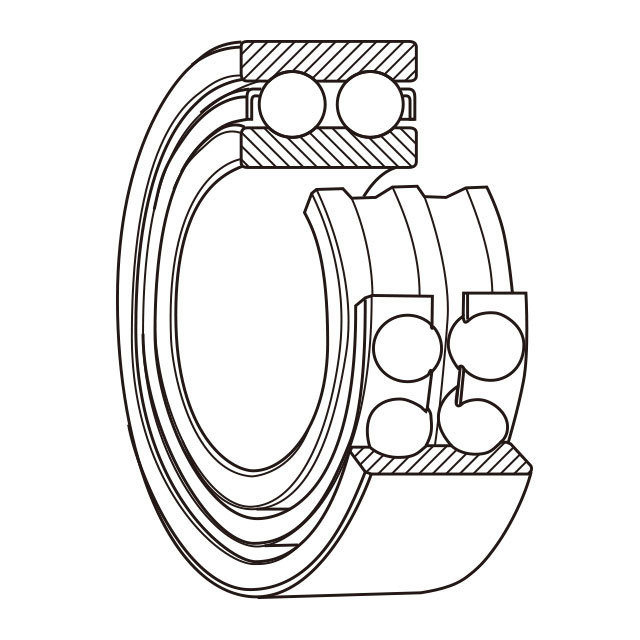

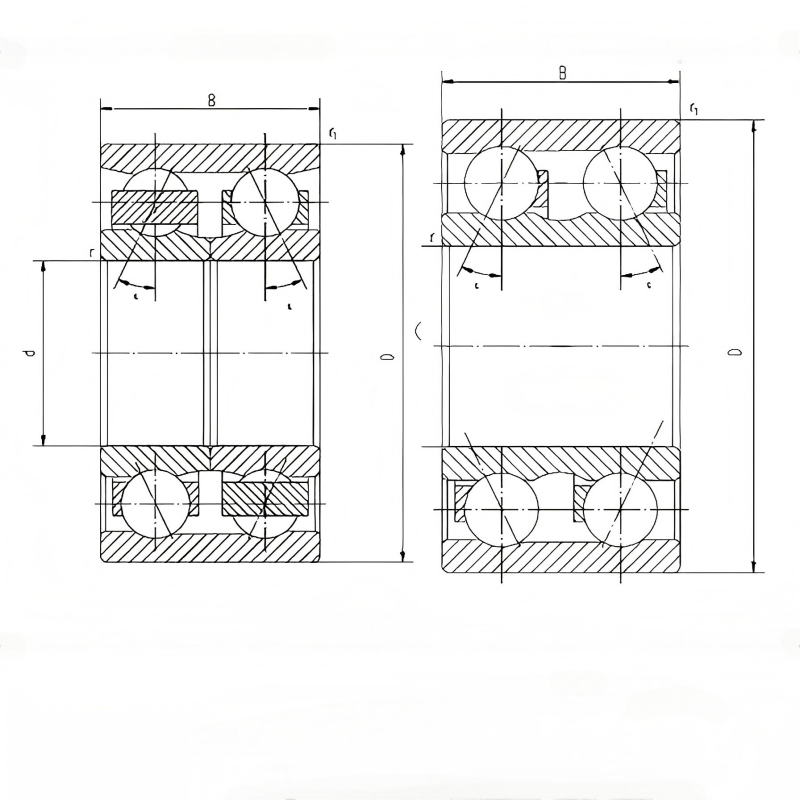

diagram of dsbr ball bearings
diagram of dsbr ball bearings
diagram of dsbr ball bearings

DAC35770442 Double Row Angular Contact Ball Bearings

The DAC35770442 wheel hub bearing is a high-precision, double-row angular contact ball bearing designed specifically for automotive front hub applications. With an internal diameter of 35 mm, an external diameter of 77 mm, and a width of 42 mm, it is suitable for handling both radial and axial loads. Manufactured using premium GCr15 bearing steel and strict quality control standards, it offers excellent resistance to wear, rust, and impact. The integrated sealing structure prevents contamination from water and dust, ensuring a longer service life and quiet performance. DAC35770442 is widely compatible with several passenger vehicles and commercial models, offering a reliable and maintenance-free solution for OEM replacement or aftermarket supply.


Contact Us download
Products
Technical Specification Technical Specification

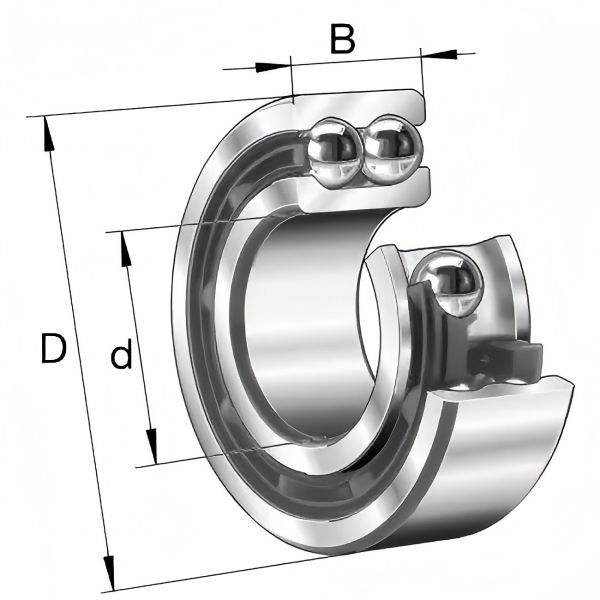

Technical Specification of DAC35770442 Double Row Angular Contact Ball Bearings




Wheel hub bearing
DAC35770442
Item Number90311-5000B
d35 mmBore diameter
D77.04 mmOutside diameter
B42 mmWidth of inner ring
Mass0.86 kg/
PackageIndustrial Packaging, Individual Packaging


Product Properties

BoreC - Cylindrical Bore
Seal

2RS - Rubber Seal on Two Sides

Cage Type

S - Steel or Standard Cage

External Modification

No External Modification

Radial Internal Play

Cn Normal Internal Play

Precision

Standard Precision

LubricationStandard Lubrication
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ringStandard


Contact DSBR for More Information
Contact DSBR for More Information
2010
SINCE
9
PATENTS
120
EXPERT WORKERS
40
EXPORT COUNTRIES
Related （II）Double Row Angular Contact Ball Bearings——Inner Diameter 32-35 mm
DAC34670037 Double Row Angular Contact Ball Bearings
More
DAC34670037 Double Row Angular Contact Ball Bearings
DAC35660033 Double Row Angular Contact Ball Bearings BAHB633676
More
DAC35660033 Double Row Angular Contact Ball Bearings
DAC35720034 Double Row Angular Contact Ball Bearings VKBA857/35BWD01C/540763/548376A
More
DAC35720034 Double Row Angular Contact Ball Bearings
DAC35650035 Double Row Angular Contact Ball Bearings GB12438 S01
More
DAC35650035 Double Row Angular Contact Ball Bearings
DAC34640037 Double Row Angular Contact Ball Bearings 171407625
More
DAC34640037 Double Row Angular Contact Ball Bearings

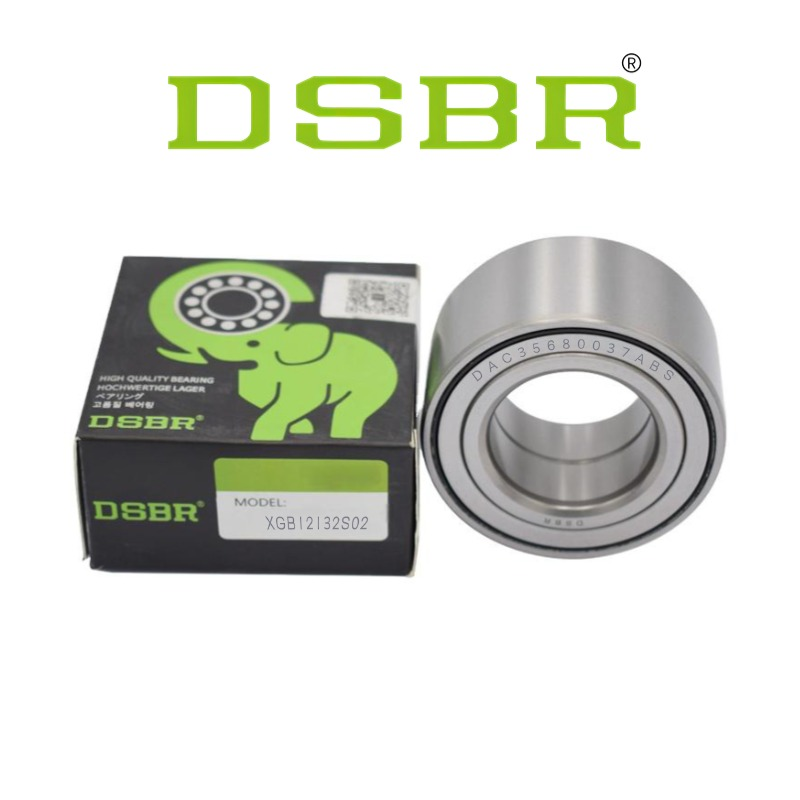

DAC35680037ABS Double Row Angular Contact Ball Bearings XGB12132S02
More
DAC35680037ABS Double Row Angular Contact Ball Bearings

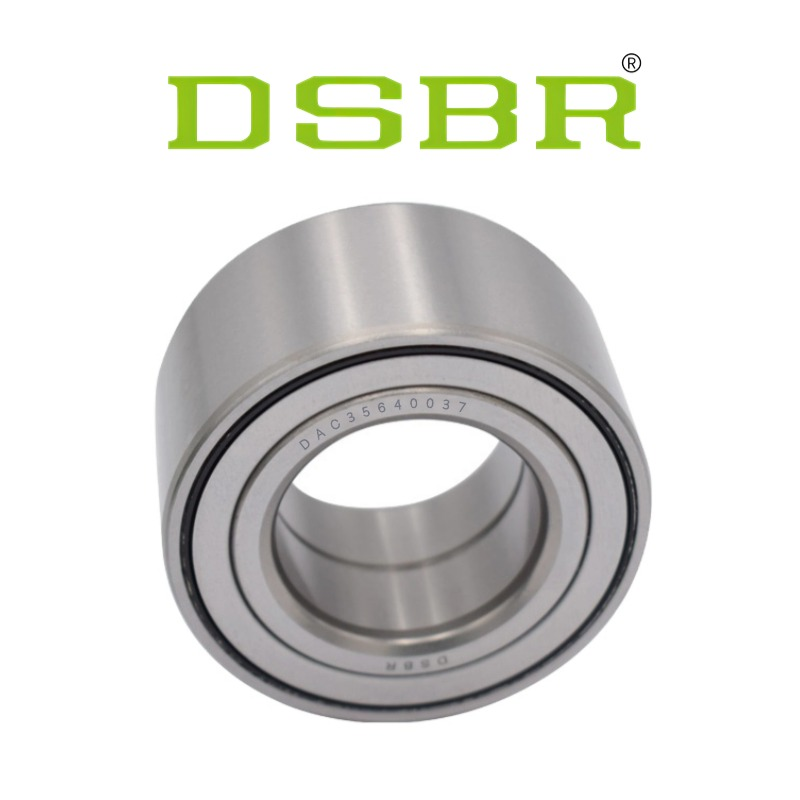

DAC35640037 Double Row Angular Contact Ball Bearings BAH0042
