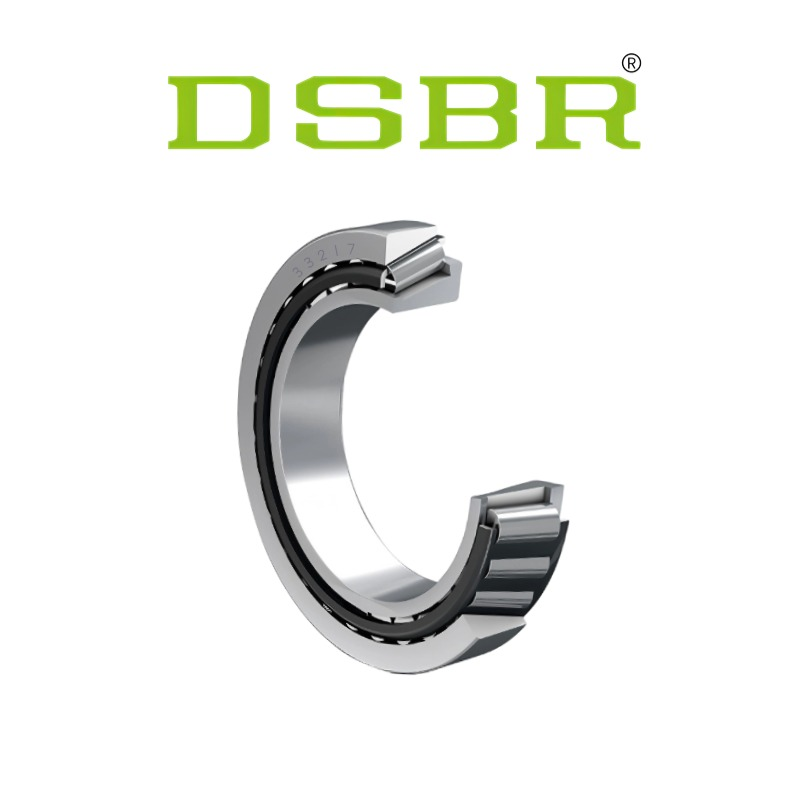

33217 3007217 Metric Tapered Roller Bearings
33217 3007217 Metric Tapered Roller Bearings
33217 3007217 Metric Tapered Roller Bearings
diagram of dsbr metric tapered roller bearings
diagram of dsbr metric tapered roller bearings (2)

33217 3007217 Metric Tapered Roller Bearings

33217 3007217 is a medium-to-heavy-duty bearing type with excellent performance for industrial machinery and powertrains. It features strong internal clearance, high load capacity, and consistent thermal resistance. DSBR's advanced surface treatment guarantees long lifespan even in dusty or corrosive environments.

Ideal for heavy-duty applications, they offer:

  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of 33217 3007217 Metric Tapered Roller Bearings

dimensions of 30204 7204e metric tapered roller bearings

Dimensions
d85 mmBore diameter
D150 mmOutside diameter
T49 mmTotal width
d1≈117.95 mmShoulder diameter of inner ring
B49 mmWidth of inner ring
C37 mmWidth of outer ring
r1,2min.2.5 mmChamfer dimension of inner ring
r3,4min.2 mmChamfer dimension of outer ring
a36.7 mmDistance side face to pressure point

abutment dimensions of 30204 7204e metric tapered roller bearings

Abutment dimensions
damax.96 mmDiameter of shaft abutment
dbmin.97 mmDiameter of shaft abutment
Damin.128 mmDiameter of housing abutment
Damax.140 mmDiameter of housing abutment
Dbmin.144 mmDiameter of housing abutment
Camin.7 mmMinimum width of space required in housing on large side face
Cbmin.12 mmMinimum width of space required in housing on small side face
ramax.2.5 mmRadius of shaft fillet
rbmax.2 mmRadius of housing fillet
