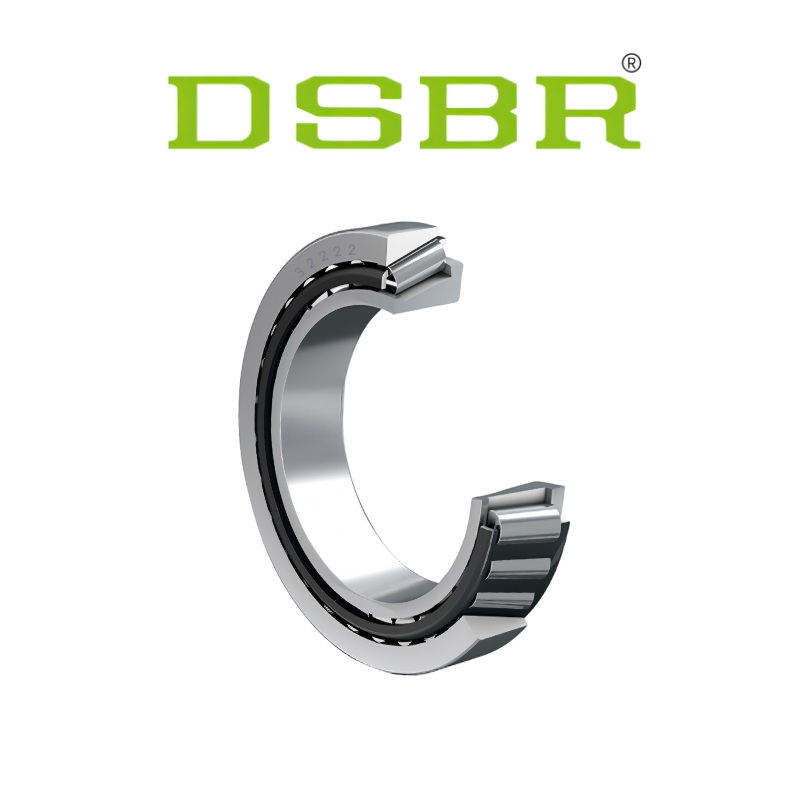

32222 7522E Metric Tapered Roller Bearings
32222 7522E Metric Tapered Roller Bearings
32222 7522E Metric Tapered Roller Bearings
diagram of dsbr metric tapered roller bearings (2)
diagram of dsbr metric tapered roller bearings

32222 7522E Metric Tapered Roller Bearings

The 32222 7522E tapered roller bearing is engineered to perform under intense mechanical stress, commonly used in heavy transport, agricultural trailers, and gear systems. With superior load-handling capacity and a rugged design, this bearing maintains dimensional accuracy at high speeds. Manufactured from premium steel and subjected to strict heat treatment, it resists wear, vibration, and misalignment. DSBR delivers 32222 bearings globally with full inspection reports and competitive OEM services.

Ideal for heavy-duty applications, they offer:


  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of 32222 7522E Metric Tapered Roller Bearings


dimensions of 30204 7204e metric tapered roller bearings


Dimensions
d110 mmBore diameter
D200 mmOutside diameter
T56 mmTotal width
d1≈151.53 mmShoulder diameter of inner ring
B53 mmWidth of inner ring
C46 mmWidth of outer ring
r1,2min.3 mmChamfer dimension of inner ring
r3,4min.2.5 mmChamfer dimension of outer ring
a46.4 mmDistance side face to pressure point

abutment dimensions of 30204 7204e metric tapered roller bearings


Abutment dimensions
damax.127 mmDiameter of shaft abutment
dbmin.124 mmDiameter of shaft abutment
Damin.170 mmDiameter of housing abutment
Damax.188 mmDiameter of housing abutment
Dbmin.190 mmDiameter of housing abutment
Camin.6 mmMinimum width of space required in housing on large side face
Cbmin.10 mmMinimum width of space required in housing on small side face
ramax.3 mmRadius of shaft fillet
rbmax.2.5 mmRadius of housing fillet
