Technical Specification

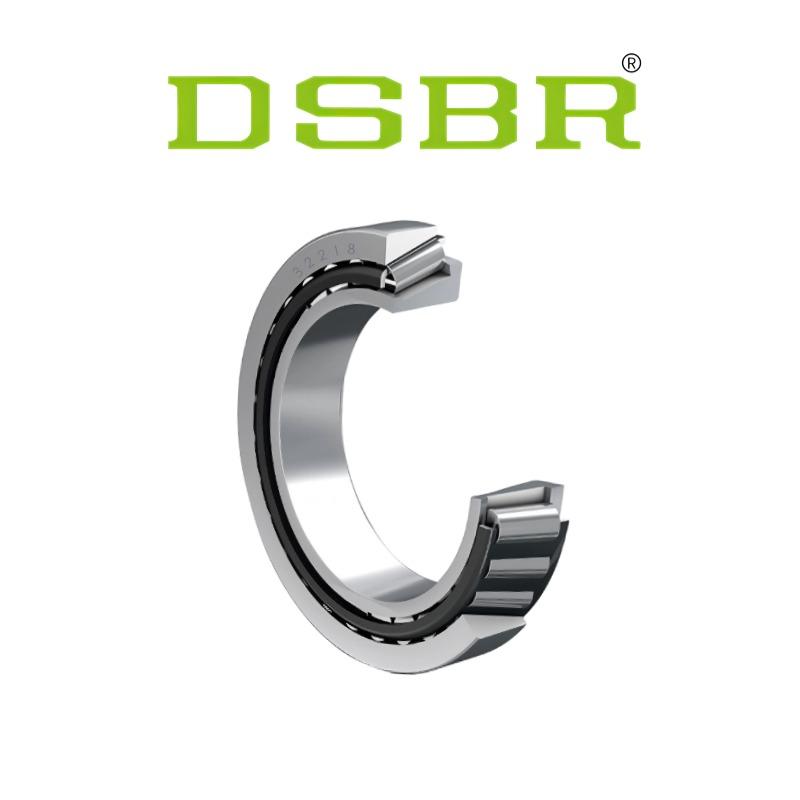

.webp "32218 7518E Metric Tapered Roller Bearings")
.webp "diagram of dsbr metric tapered roller bearings (2)")
The 32218 7518E tapered roller bearing from DSBR is built for heavy-load applications requiring high durability and minimal maintenance. Commonly used in transport vehicles, industrial gear systems, and mining machinery, it delivers excellent performance under high axial and radial pressure. It is made from refined bearing-grade steel, featuring precision-ground raceways and optimized contact angles. DSBR provides OEM branding, international shipping, and reliable after-sales service.
Ideal for heavy-duty applications, they offer:
Excellent capacity for both radial and axial forces
Support for axial loads in a single direction
Reduced friction for efficient, high-speed operation
Durable, replaceable, and service-friendly design
Technical Specification
| Dimensions | ||
| d | 90 mm | Bore diameter |
| D | 160 mm | Outside diameter |
| T | 42.5 mm | Total width |
| d1 | ≈121 mm | Shoulder diameter of inner ring |
| B | 40 mm | Width of inner ring |
| C | 34 mm | Width of outer ring |
| r1,2 | min.2.5 mm | Chamfer dimension of inner ring |
| r3,4 | min.2 mm | Chamfer dimension of outer ring |
| a | 35.6 mm | Distance side face to pressure point |
| Abutment dimensions | ||
| da | max.103 mm | Diameter of shaft abutment |
| db | min.102.5 mm | Diameter of shaft abutment |
| Da | min.138 mm | Diameter of housing abutment |
| Da | max.150 mm | Diameter of housing abutment |
| Db | min.152 mm | Diameter of housing abutment |
| Ca | min.5 mm | Minimum width of space required in housing on large side face |
| Cb | min.8.5 mm | Minimum width of space required in housing on small side face |
| ra | max.2.5 mm | Radius of shaft fillet |
| rb | max.2 mm | Radius of housing fillet |
