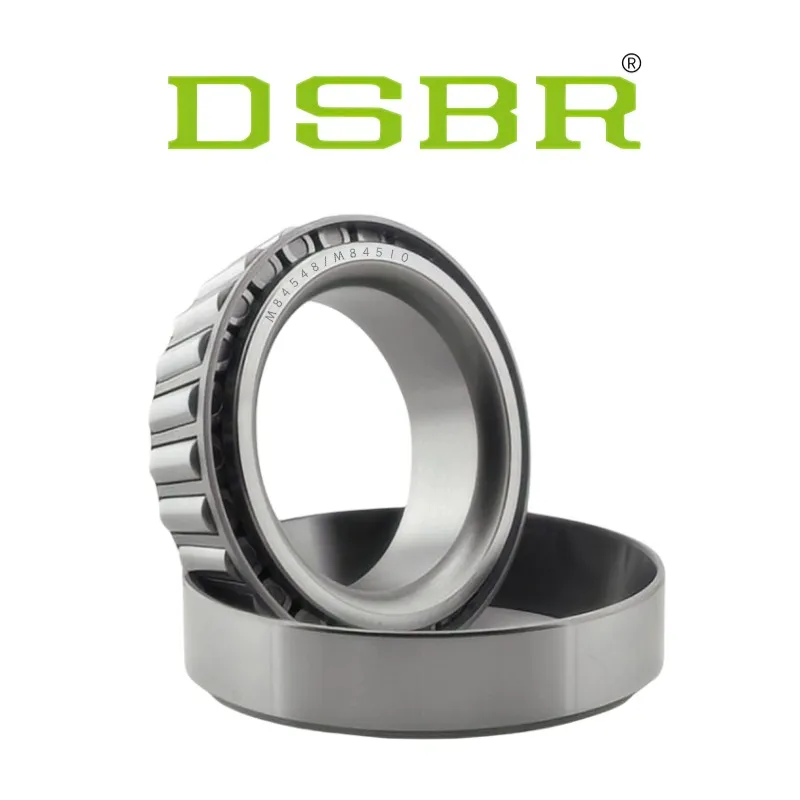

Technical Specification .webp "M84510 Inch Tapered Roller Bearings")
The M84548 cone and M84510 cup set provide a compact tapered bearing solution for tight-space automotive applications. Built from quality steel with precision rollers, they deliver reliable load-bearing and smooth performance in compact assemblies. Ideal for scooters, ATVs, and light-duty machinery, these bearings simplify installation while maintaining durability and operational accuracy. Manufactured by DSBR to strict specifications, they offer dependable performance for both OEM and aftermarket use.
Technical Specification
| Technical Specifications | |
| Type | Tapered Roller Bearing |
| Bore Type | Round |
| Material | Case Carburized Steel |
| Limiting Speed - Grease | 6900 RPM |
| Style | Cone & Cup |
| Precision Rating | Not Available |
| Cone Number | M84548 |
| Cup Number | M84510 |
| Configuration | One |
| Lubrication | w/o Oil Hole |
| e (Axial Load Factor) | 0.55 |
| Y2 (Axial Load Factor) | 1.1 |
| Y0 (Axial Load Factor) | 0.6 |
| Static Load Rating | 10903 lbf 48500 N 48.50 kN |
| Dynamic Load Rating | 9442 lbf 42000 N 42.00 kN |
| Enclosure | Open |
| Weight | 0.531 lb 0.240 kg |
| Operating Temperature Range | -40 to 250°F -40 to 120°C |
| Dimensional Specifications | |
| B | 1.0000 in 25.400 mm |
| D | 2.2500 in 57.150 mm |
| Wo | 0.5800 in 14.732 mm |
| Wi | 0.7650 in 19.431 mm |
| W | 0.7650 in 19.431 mm |
| r | 0.0600 in 1.500 mm |
| R | 0.06 in 1.5 mm |
| a (Effective Load Center) | -0.1300 in -3.400 mm |
| U | 1.42 in 36.0 mm |
| V | 1.30 in 33.0 mm |
| X | 2.13 in 54.0 mm |
| Z | 1.91 in 48.5 mm |
