Technical Specification
.webp "DB Double Row Tapered Roller Bearings")

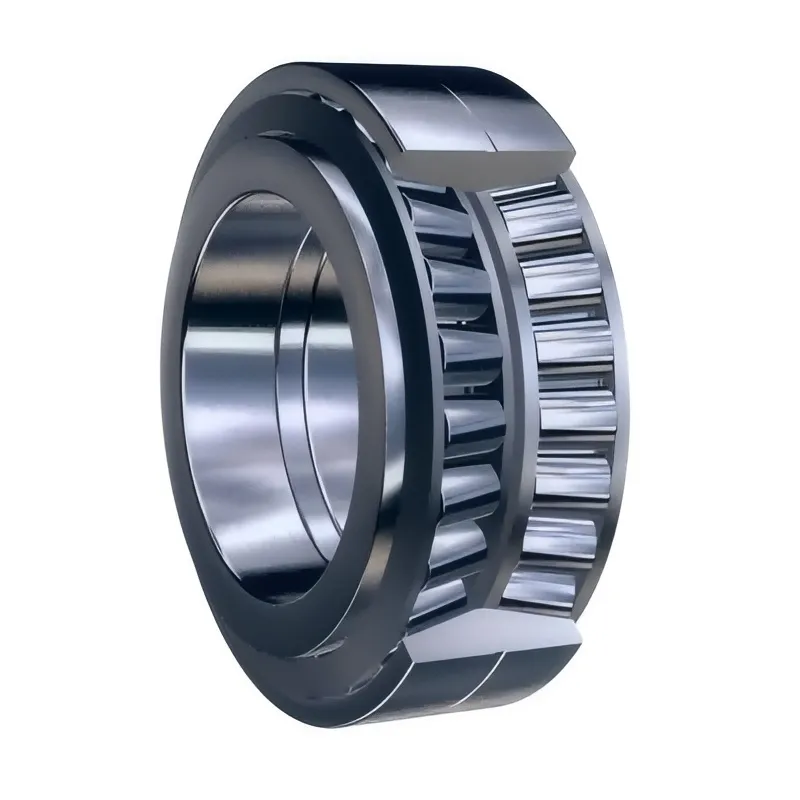

.webp "diagram of dsbr tapered roller bearings (2)")

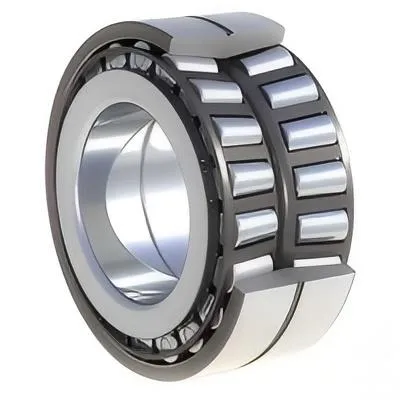

_20250808161306.webp)

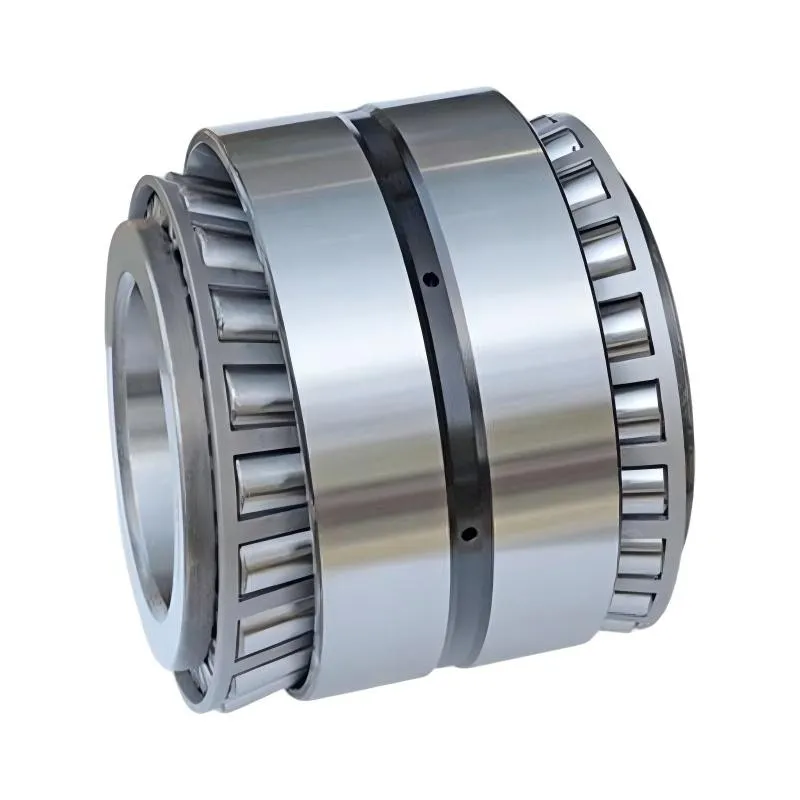

_20250808161306.webp)
The LM11749/10/DB tapered roller bearing is built to handle both radial and axial loads efficiently. Crafted from premium bearing steel, it offers outstanding wear resistance, high strength, and operational stability. This bearing’s design ensures optimal load distribution, making it suitable for automotive wheel hubs, trailers, and machinery applications. Its heat-treated components provide durability under extreme conditions, while precision machining guarantees smooth, quiet performance. Manufactured under DSBR’s quality control system, the LM11749/10/DB meets global performance and reliability standards.
Technical Specification

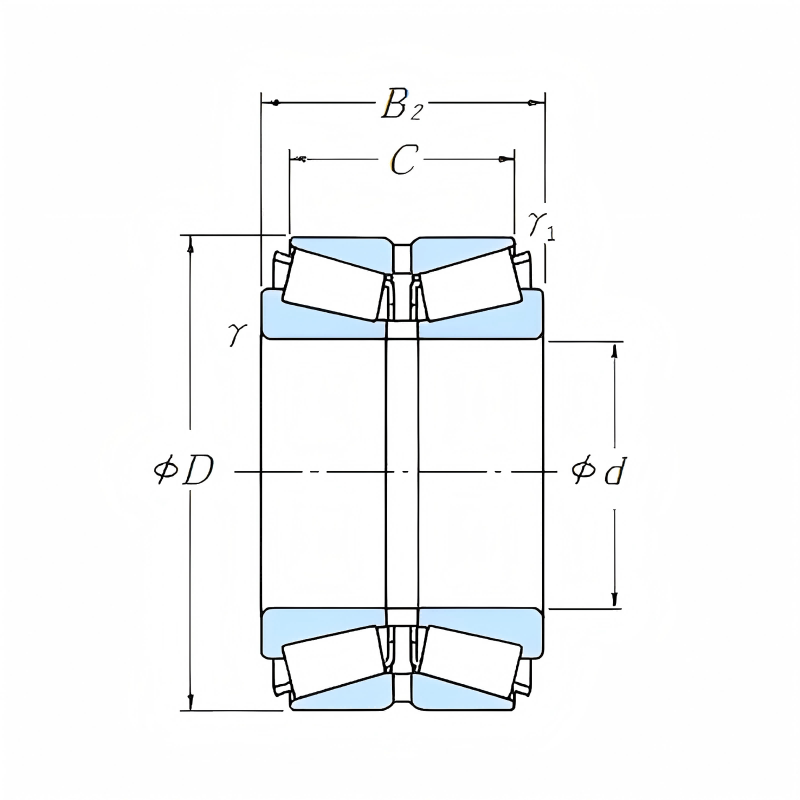

.png "diagram_of_dsbr_Tapered_Roller_bearings_(1).png")
| Wheel hub bearing | LM11749/10/DB | |
| Item Number | LM11749/10/DB | |
| d | 17.46 mm | Bore diameter |
| D | 39.88 mm | Outside diameter |
| B | 29.21 mm | Width of inner ring |
| Structure | Tapered Roller | |
| Material: | GCR 15 | |
| Package | Industrial Packaging, Individual Packaging | |
