Technical Specification
.webp "diagram of dsbr metric tapered roller bearings (2)")

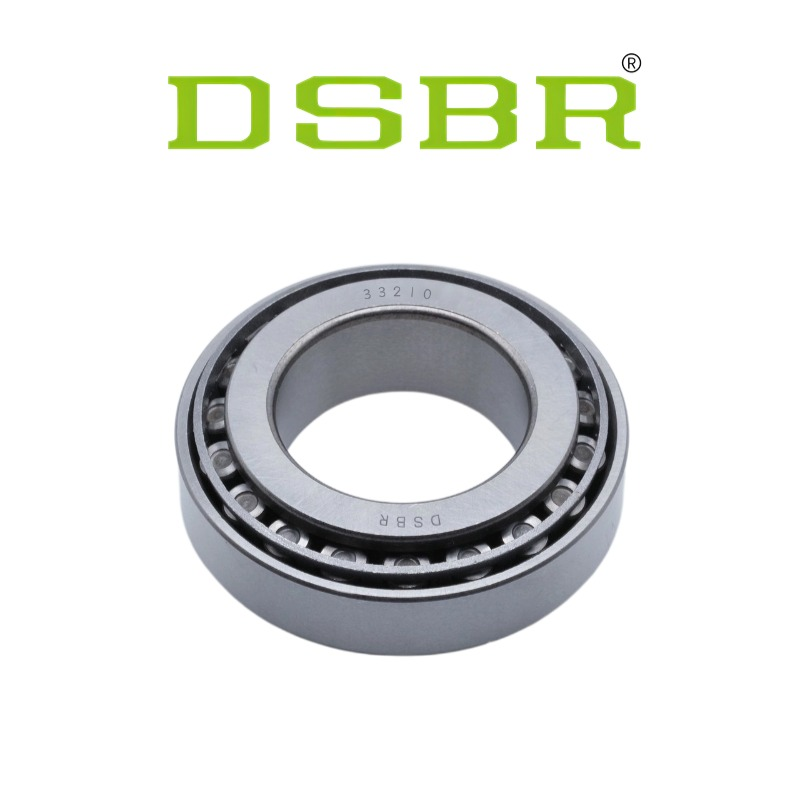

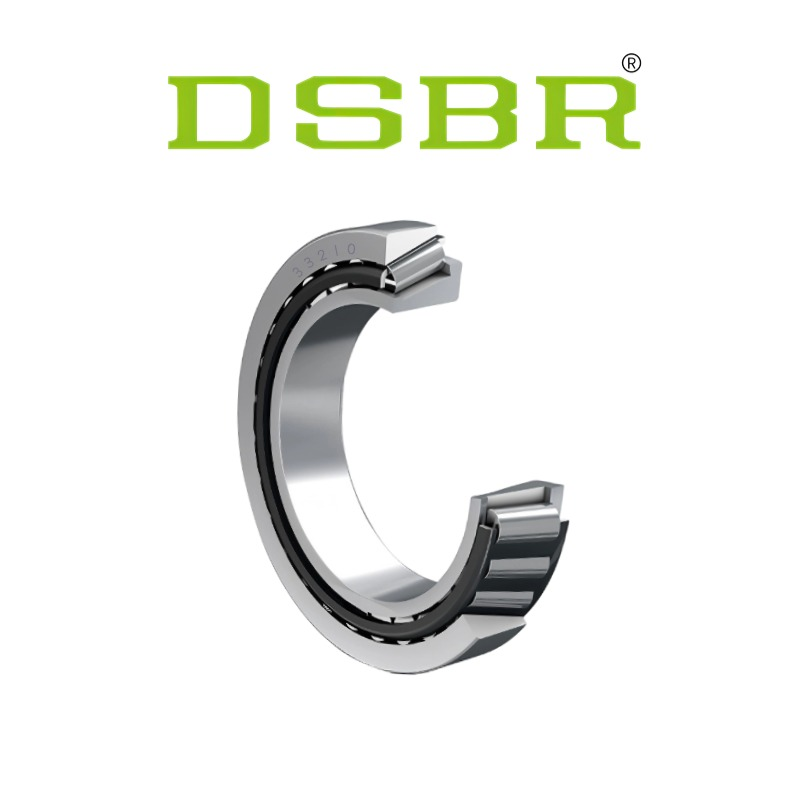

With its robust structure and precise roller alignment, the 33210/3007210 tapered roller bearing is ideal for heavy vehicles, gearboxes, and construction equipment. It offers high load-carrying capacity, excellent sealing compatibility, and minimal heat generation. DSBR’s production ensures every unit is ISO-certified and performance-tested.
Ideal for heavy-duty applications, they offer:
Excellent capacity for both radial and axial forces
Support for axial loads in a single direction
Reduced friction for efficient, high-speed operation
Durable, replaceable, and service-friendly design
Technical Specification
| Dimensions | ||
| d | 50 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| T | 32 mm | Total width |
| d1 | ≈70.8 mm | Shoulder diameter of inner ring |
| B | 32 mm | Width of inner ring |
| C | 24.5 mm | Width of outer ring |
| r1,2 | min.1.5 mm | Chamfer dimension of inner ring |
| r3,4 | min.1.5 mm | Chamfer dimension of outer ring |
| a | 22.975 mm | Distance side face to pressure point |
| Abutment dimensions | ||
| da | max.57 mm | Diameter of shaft abutment |
| db | min.59 mm | Diameter of shaft abutment |
| Da | min.77 mm | Diameter of housing abutment |
| Da | max.82 mm | Diameter of housing abutment |
| Db | min.87 mm | Diameter of housing abutment |
| Ca | min.5 mm | Minimum width of space required in housing on large side face |
| Cb | min.7.5 mm | Minimum width of space required in housing on small side face |
| ra | max.1.5 mm | Radius of shaft fillet |
| rb | max.1.5 mm | Radius of housing fillet |
