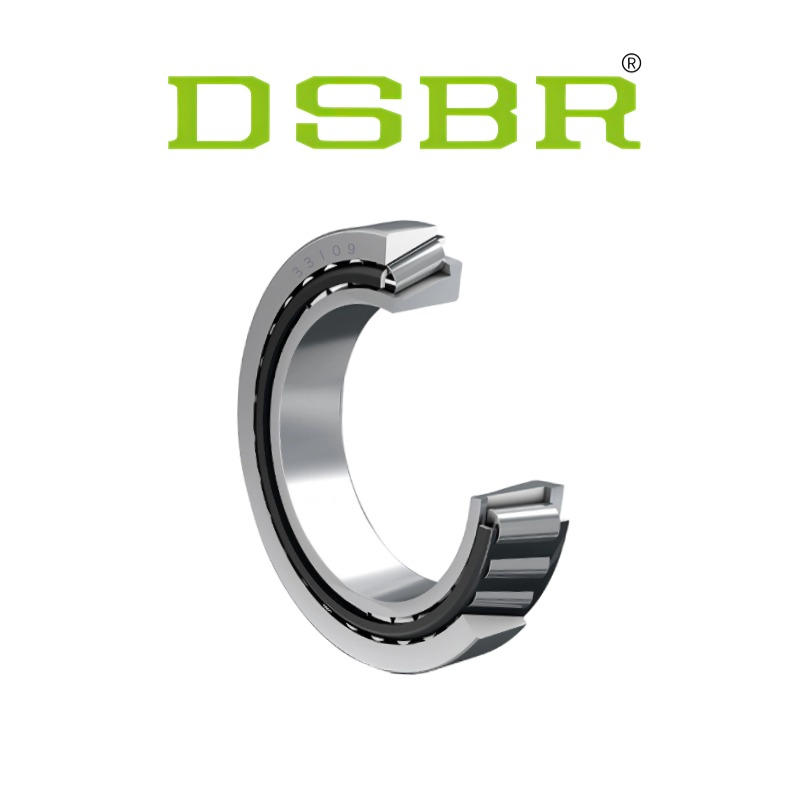

33109 3007709E Metric Tapered Roller Bearings
33109 3007709E Metric Tapered Roller Bearings
33109 3007709E Metric Tapered Roller Bearings
diagram of dsbr metric tapered roller bearings
diagram of dsbr metric tapered roller bearings (2)

33109 3007709 Metric Tapered Roller Bearings

The 33109 3007709  tapered roller bearing is designed for applications requiring reliable handling of both radial and axial loads. With precision-matched inner and outer rings and optimized roller geometry, it ensures stable rotation and long service life under heavy-duty conditions. Commonly used in automotive hubs, industrial gearboxes, and agricultural equipment, 33109 bearings from DSBR are produced with strict quality standards and excellent surface finishing to reduce friction and noise.

Ideal for heavy-duty applications, they offer:

  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Contact Us download
Products
Technical Specification Technical Specification

Technical Specification of 33109 3007709 Metric Tapered Roller Bearings

dimensions of 30204 7204e metric tapered roller bearings

Dimensions
d45 mmBore diameter
D80 mmOutside diameter
B26 mmWidth of inner ring
C20.5 mmWidth of outer ring
T26 mmTotal width
r1,2min.1.5 mmChamfer dimension of inner ring
r3,4min.1.5 mmChamfer dimension of outer ring
a19 mmDistance side face to pressure point

d1≈63.8 mmShoulder diameter of inner ring


abutment dimensions of 30204 7204e metric tapered roller bearings

Abutment dimensions
damax.52 mmDiameter of shaft abutment
dbmin.52 mmDiameter of shaft abutment
Damin.69 mmDiameter of housing abutment
Damax.73 mmDiameter of housing abutment
Dbmin.77 mmDiameter of housing abutment
Camin.4 mmMinimum width of space required in housing on large side face
Cbmin.5.5 mmMinimum width of space required in housing on small side face
ramax.1.5 mmRadius of shaft fillet
rbmax.1.5 mmRadius of housing fillet
