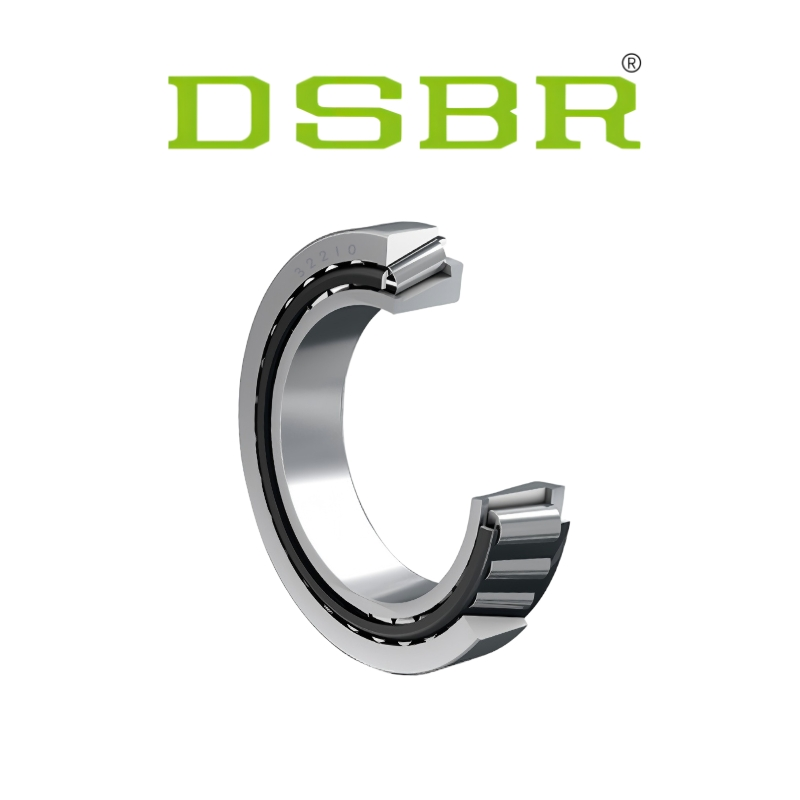

32210 7510E Metric Tapered Roller Bearings
32210 7510E Metric Tapered Roller Bearings
32210 7510E Metric Tapered Roller Bearings
diagram of dsbr metric tapered roller bearings (2)
diagram of dsbr metric tapered roller bearings

32210 7510E Metric Tapered Roller Bearings

The 32210 7510E tapered roller bearing is engineered for performance under heavy axial and radial loads, typically found in trucks, construction equipment, and industrial machinery. With a 50 mm bore diameter and robust design, it’s widely used in automotive wheel hubs, differentials, and transmission assemblies that demand long-lasting operation and minimal maintenance.

Crafted from premium bearing steel and precision machined for optimal internal geometry, the 32210 7510E bearing ensures low friction, excellent alignment control, and extended service life, even in dusty, high-vibration environments. Its cage design enables uniform load distribution and thermal stability during high-speed rotation.

DSBR provides fully traceable bearings with batch-level inspection reports, dimensional verification, and surface roughness control. We also support bulk export, custom labeling, and packaging for global distributors.

Choose DSBR’s 32210 for a reliable, ISO-compliant solution in your high-performance bearing systems.

Ideal for heavy-duty applications, they offer:


  • Excellent capacity for both radial and axial forces

  • Support for axial loads in a single direction

  • Reduced friction for efficient, high-speed operation

  • Durable, replaceable, and service-friendly design


Technical Specification Technical Specification

Technical Specification of 32210 7510E Metric Tapered Roller Bearings


dimensions of 30204 7204e metric tapered roller bearings



Dimensions
d50 mmBore diameter
D90 mmOutside diameter
T24.75 mmTotal width
d168.5mmShoulder diameter of inner ring
B23 mmWidth of inner ring
C19 mmWidth of outer ring
r1,2min.1.5 mmChamfer dimension of inner ring
r3,4min.1.5 mmChamfer dimension of outer ring
a20.769 mmDistance side face to pressure point

abutment dimensions of 30204 7204e metric tapered roller bearings


Abutment dimensions
damax.58 mmDiameter of shaft abutment
dbmin.59mmDiameter of shaft abutment
Damin.78 mmDiameter of housing abutment
Damax.82 mmDiameter of housing abutment
Dbmin.85 mmDiameter of housing abutment
Camin.3 mmMinimum width of space required in housing on large side face
Cbmin.5.5 mmMinimum width of space required in housing on small side face
ramax.1.5 mmRadius of shaft fillet
rbmax.1.5 mmRadius of housing fillet
