Technical Specification
.webp "diagram of dsbr metric tapered roller bearings (2)")

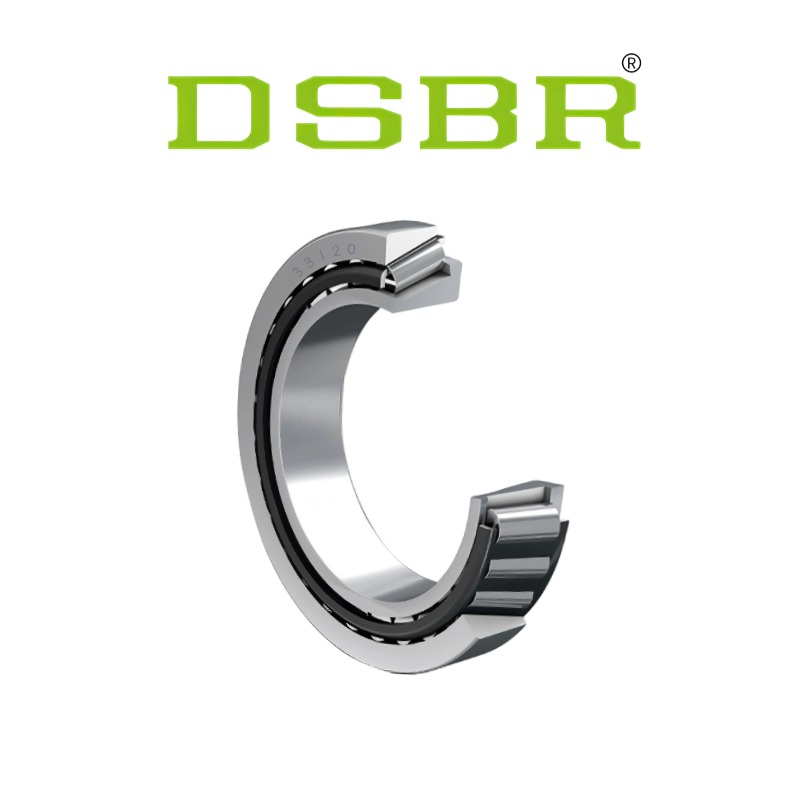

DSBR's 33120 3007720 tapered roller bearing offers exceptional load-handling capabilities, high-speed stability, and long lifespan. Crafted from high-purity bearing steel and inspected with strict quality controls, this bearing performs reliably in large powertrain systems and heavy-duty drive assemblies. Its optimized geometry reduces wear and supports extended lubrication intervals.
Ideal for heavy-duty applications, they offer:
Excellent capacity for both radial and axial forces
Support for axial loads in a single direction
Reduced friction for efficient, high-speed operation
Durable, replaceable, and service-friendly design
Technical Specification
| Dimensions | ||
| d | 100 mm | Bore diameter |
| D | 165 mm | Outside diameter |
| B | 52 mm | Width of inner ring |
| C | 40 mm | Width of outer ring |
| T | 52 mm | Total width |
| r1,2 | min.2.5 mm | Chamfer dimension of inner ring |
| r3,4 | min.2 mm | Chamfer dimension of outer ring |
| a | 40 mm | Distance side face to pressure point |
| d1 | ≈133.2 mm | Shoulder diameter of inner ring |
| Abutment dimensions | ||
| da | max.111 mm | Diameter of shaft abutment |
| db | min.110 mm | Diameter of shaft abutment |
| Da | min.142 mm | Diameter of housing abutment |
| Da | max.155 mm | Diameter of housing abutment |
| Db | min.159 mm | Diameter of housing abutment |
| Ca | min.8 mm | Minimum width of space required in housing on large side face |
| Cb | min.12 mm | Minimum width of space required in housing on small side face |
| ra | max.2.5 mm | Radius of shaft fillet |
| rb | max.2 mm | Radius of housing fillet |
