How do double row tapered roller bearings support radial and axial loads?
A double row tapered roller bearing uses two rows of tapered rollers to distribute radial load and axial load through the raceways. The bearing arrangement can support axial loads in both directions, subject to the design and operating conditions of the specific model.

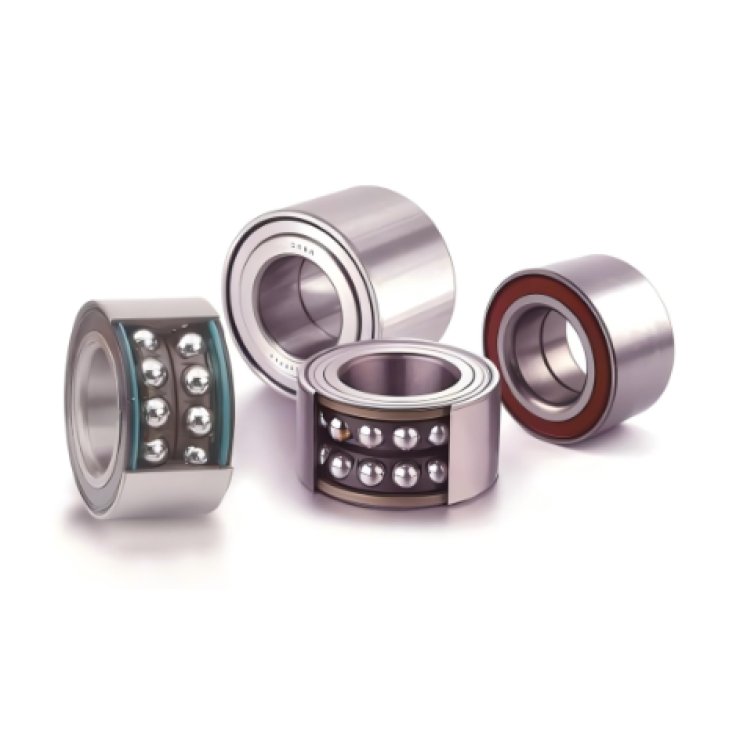

How do double row angular contact ball bearings carry combined loads?
A double row angular contact ball bearing uses two rows of balls with defined contact angles. This structure supports radial loads and axial loads in both directions, while the actual load capacity and stiffness depend on the specific bearing geometry and operating conditions.
When should preload or internal clearance be considered?
Preload or internal clearance affects bearing rigidity, operating temperature, friction, and service life. The required setting must be defined according to the wheel hub or axle design, fit conditions, load profile, and OEM technical requirements; a generic setting should not be applied to every model.
Why is the contact angle important in a wheel hub bearing?
The contact angle influences the bearing’s axial load capacity, rigidity, and load distribution. The required contact angle should match the hub design, vehicle load profile, steering forces, and target operating conditions.
Which dimensions are required to confirm a double row tapered roller bearing?
Please provide the bore diameter (d), outside diameter (D), bearing width (B/C or T), corner radii, seal configuration, and reference number. For a vehicle application, the OE number, axle position, and vehicle platform are also important for verification.
What information is needed to specify a DAC wheel hub bearing?
Please provide the DAC number, OE number, bore diameter, outside diameter, width, installation position, and vehicle application. Seal type, ABS sensor requirement, encoder ring requirement, and mating hub details should also be confirmed where applicable.

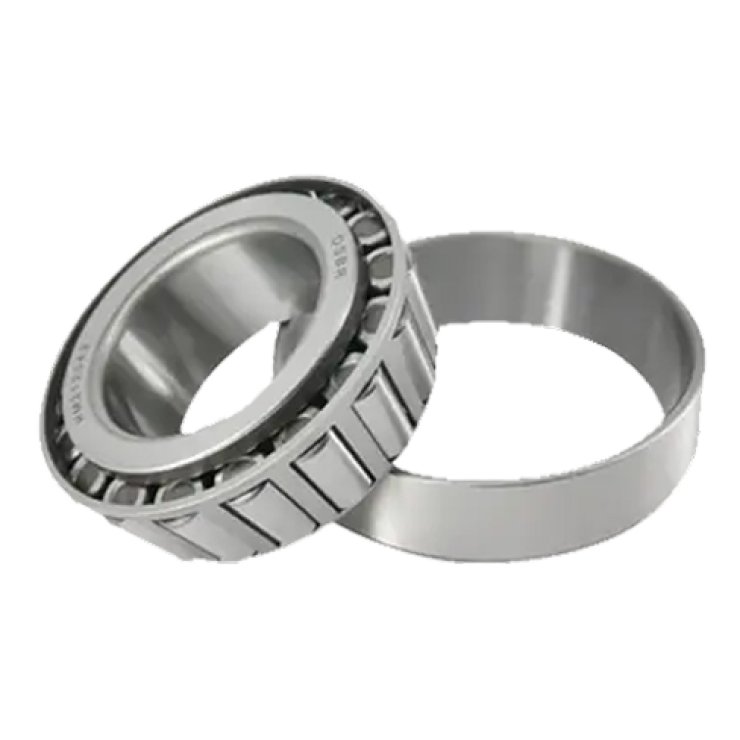

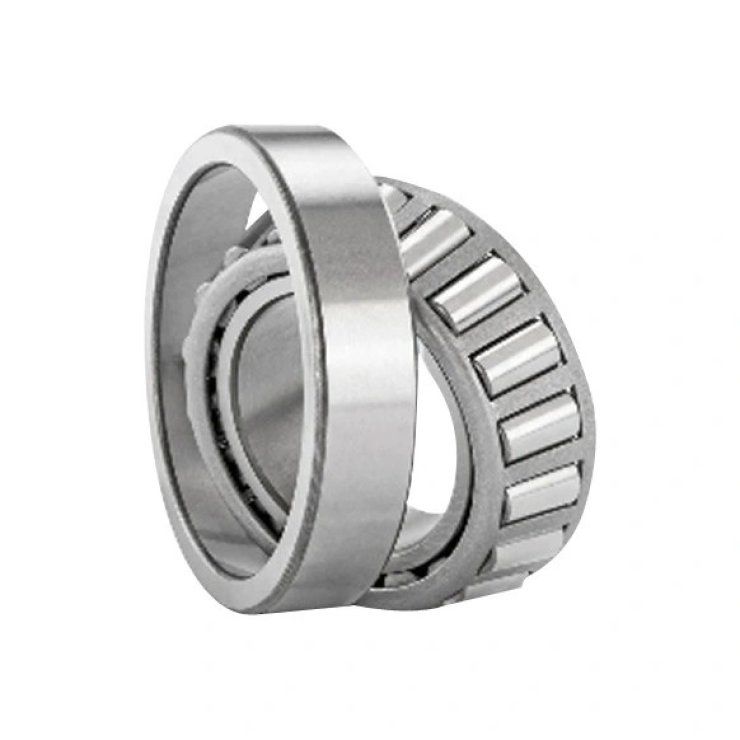

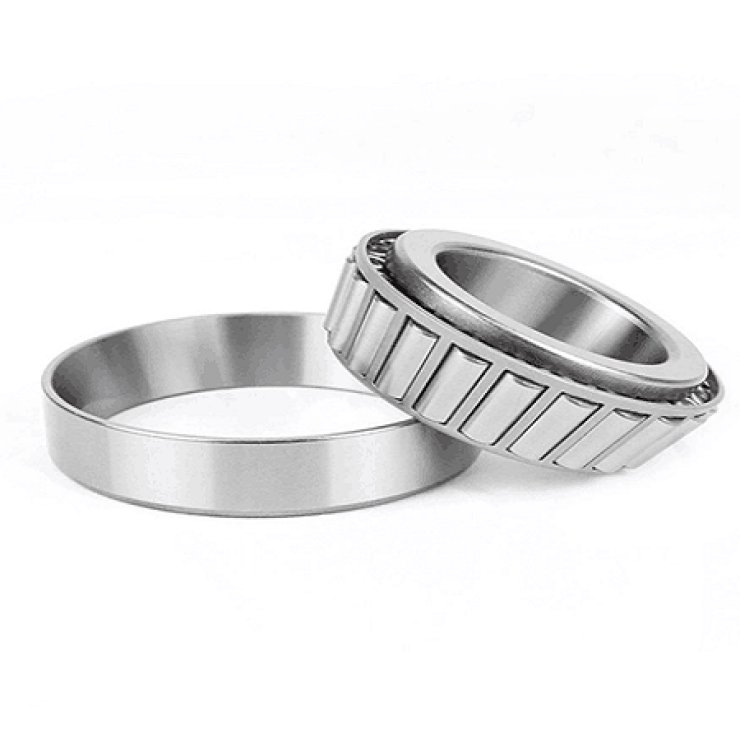

How to install a tapered roller bearing correctly?
To install a tapered cone bearing, first clean the area, then gently fit the bearing into place. Ensure it’s aligned correctly, then secure it firmly, avoiding any force that could cause damage.
How should the seal configuration be specified?
The seal configuration should be selected according to the exposure to water, dust, road debris, grease retention requirements, and hub design. Please confirm whether the existing bearing is sealed or open, and provide the original drawing or sample when possible.
Are ABS sensor and non-ABS wheel hub bearings interchangeable?
No. ABS-related bearing configurations must match the vehicle’s sensor system and hub design. Before ordering, confirm the OE number, sensor requirement, encoder type, connector arrangement, and installation position.
How to maintain and prolong the lifespan of tapered roller bearings?
To prolong the lifespan of conical roller bearings, regular inspection, proper lubrication, and timely cleaning are crucial. Avoiding overloading and harsh environments also helps maintain the optimal performance of these tapered ball bearings.
What technical information should be included in an OEM or distributor RFQ?
A complete RFQ should include the bearing number, OE or cross-reference number, drawing revision, dimensions, vehicle or equipment application, annual demand, packaging requirements, and required inspection documents. Any special requirements for material, marking, sealing, grease, or testing should be stated clearly.
How should bearing fit and mounting conditions be evaluated?
The shaft and housing fit, press-in direction, shoulder dimensions, assembly force, and mounting method should be confirmed against the vehicle or hub drawing. Improper fit or installation can affect internal clearance, bearing preload, sealing performance, and service life.
