High-Quality Options from Tapered Roller Bearing

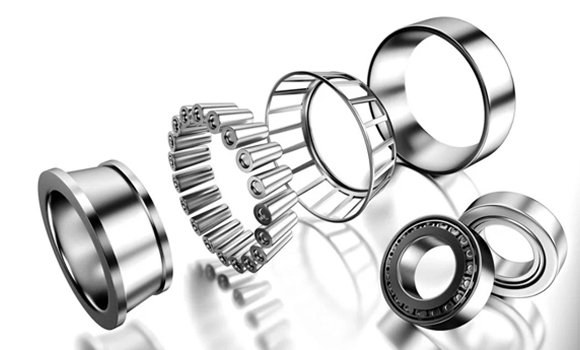

Tapered Roller Bearings from DSBR, one of the leading tapered roller bearing suppliers and manufacturers, are a testament to superior engineering and design. These robust bearings handle both radial and axial loads with ease, ensuring optimal performance.
Their unique tapered structure offers unparalleled durability and efficiency, making them an essential component in various machinery. Trust DSBR for reliable, high-quality custom cone roller bearings.
TYPES OF CONICAL ROLLER BEARING
Metric Tapered Roller Bearings
- 30200 Series Tapered Roller Bearings
- 30300 Series Tapered Roller Bearings
- 32200 Series Tapered Roller Bearings
- 32300 Series Tapered Roller Bearings
- 31300 Series Tapered Roller Bearings
- 32000 Series Tapered Roller Bearings
- 32900 Series Tapered Roller Bearings
- 33000 Series Tapered Roller Bearings
- 33100 Series Tapered Roller Bearings
- 33200 Series Tapered Roller Bearings

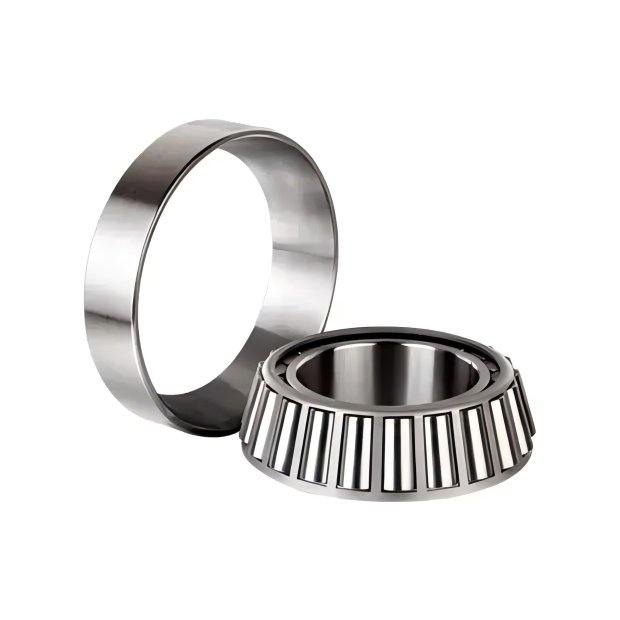

Inch Tapered Roller Bearings
- （I）Inch Tapered Roller Bearings——Inner Diameter 17.426-31.75mm

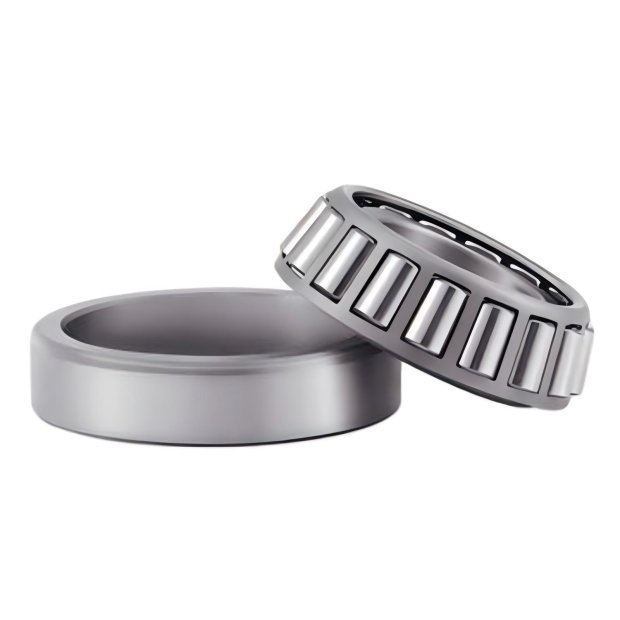

- （II）Inch Tapered Roller Bearings——Inner Diameter 33.338-42.875mm
- （III）Inch Tapered Roller Bearings——Inner Diameter 44.45-50.8mm
- （IV）Inch Tapered Roller Bearings——Inner Diameter 52.388-75mm
- （V）Inch Tapered Roller Bearings——Inner Diameter 76.2-120mm
As one of the leading automotive bearing manufacturers, DSBR offers a diverse range of conical roller ball bearings, each designed for specific applications. From single row tapered roller bearing for supporting radial loads to double taper roller bearing for handling combined loads, DSBR tapered roller bearing exporter has it all. Our double-row tapered roller bearings are perfect for high-load applications.
DSBR tapered roller bearings are widely used in many industries. As an experienced tapered roller bearing exporter, we will recommend tapered roller bearings for sale according to practical applications to meet different grades and speed requirements.
FACTORY SHOW
The Manufacturing Process of Tapered Roller Bearings
The manufacturing process of taper roller bearing series begins with the selection of high-quality materials. These taper roller bearing materials also for the auto parts bearing are meticulously chosen to ensure durability, strength, and resistance to wear and tear, providing a solid foundation for the bearings.
The next step involves precision engineering. Each component is carefully designed and machined to exact taper roller bearing specification. By this, taper roller bearing suppliers can ensure the optimal performance, smooth operation, and exceptional load capacity.
The final stage is rigorous testing. Each precision tapered roller bearing undergoes stringent quality checks to ensure it meets the highest standards of performance and reliability. This ensures that every cone roller bearing delivers consistent, long-lasting service, living up to the DSBR promise of excellence.
DSBR
FAQS OF CONICAL ROLLER BEARING
What operating data is required to select a transmission bearing?
Key data includes transmission type, shaft position, torque, radial and axial loads, rotational speed, duty cycle, lubrication type, oil viscosity, operating temperature, and available installation space.
FAQ
Why must the cone and cup numbers be specified together?
An inch tapered roller bearing consists of a cone and a cup engineered to work as a matched assembly. Similar-looking components should not be mixed; both reference numbers must be confirmed for correct fit and performance.
FAQ
How are metric tapered roller bearing series selected for an OEM application?
Selection should start with the required bore, outside diameter, total width, load direction, speed, shaft and housing design, and expected duty cycle. The final bearing series should be verified against the OEM drawing and technical requirements.
FAQ
Why are tapered roller bearings used in axles, transmissions, and gearboxes?
Tapered roller bearings are designed to support combined radial and axial loads. Their geometry makes them suitable for applications such as axles, transmissions, gearboxes, wheel hubs, trailers, and industrial drive systems where shaft positioning and load control are important.
FAQ
How do preload and endplay affect transmission bearing performance?
Incorrect preload or endplay can affect gear meshing accuracy, noise and vibration, running temperature, friction, and bearing life. The target setting should be controlled according to the gearbox design and assembly process.
FAQ
Which inch dimensions are critical for interchangeability?
Key dimensions include bore diameter, cup outside diameter, cone width, cup width, total bearing width, mounting radii, and abutment dimensions. A difference in any of these values can affect installation, clearance, and service life.
FAQ
How do preload and endplay affect metric tapered roller bearing performance?
Preload and endplay directly influence bearing stiffness, running temperature, friction, rotational accuracy, and service life. The setting should be defined according to the specific axle, gearbox, or wheel-end design rather than using a universal value.
FAQ
When is a matched tapered roller bearing arrangement required?
A single-row tapered roller bearing supports axial load in one direction. A matched bearing arrangement is commonly used when axial loads must be supported in both directions or when the application requires controlled shaft positioning, preload, or rigidity.
FAQ
Why are shaft and housing fits important in transmission bearing assemblies?
Incorrect fits can cause ring creep, distortion, reduced internal clearance, poor load distribution, or installation damage. Shaft and housing tolerances, shoulder geometry, and press-fit procedures should be verified during design validation.
FAQ
How do load ratings and bearing geometry affect selection?
The required bearing should be selected according to radial load, axial load, speed, duty cycle, and available mounting space. The specific bearing model must be checked against the application’s calculated loads and operating conditions.
FAQ
Which dimensions should be confirmed before replacing a metric tapered roller bearing?
Confirm the bearing number, bore diameter, outside diameter, total width, cone width, cup width, and mounting radii. Shaft and housing fit conditions should also be checked before approving an interchange.
FAQ
How do preload and endplay affect tapered roller bearing performance?
Preload and endplay influence bearing stiffness, heat generation, friction, running accuracy, and service life. The correct setting must follow the equipment manufacturer’s assembly specification and should be validated for the actual load, speed, lubrication, and temperature conditions.
FAQ
KNOW MORE ABOUT TAPERED ROLLER BEARINGS
