（I）Double Row Angular Contact Ball Bearings——Inner Diameter20-30 mm
Provide Professional High-quality Bearings for Over 70 Countries
Engineered for compact machinery, these tapered roller bearings combine high load capacity with a low-friction design, ensuring smooth performance even in demanding applications. Manufactured with premium steel and strict dimensional accuracy, they deliver excellent reliability for automotive, industrial, and agricultural equipment. Ideal for systems that require compact size yet durable construction, DSBR bearings guarantee consistent operation and extended service life.
d 20-30 mm Double Row Angular Contact Ball Bearing Dimensions
| Reference number | Reference number | Dimension (mm) | Oil seal | APPLICATION | |||
| d | D | B | C | ||||
| DAC20420030/29 | 565592 | 20 | 42 | 30 | 29 | NONE | |
| DAC205000206 | 156704 | 20 | 50 | 20.6 | 20.6 | YES | |
| DAC255200206 | 617546A | 25 | 52 | 20.6 | 20.6 | YES | FIAT, SEAT, POLE AVENTILADOR 124 |
| DAC25520037 | 546467/576467/BT2B445539AA | 25 | 52 | 37 | 37 | YES | RENAULT, PEUGEOT, CITROEN, TRAS RENAULT 9 |
| DAC25520040 | 25 | 52 | 40 | 40 | YES | ||
| DAC25520042 | 25BWD01 | 25 | 52 | 42 | 42 | YES | |
| DAC25520043 | 25 | 25 | 52 | 43 | 43 | YES | RENAULT, PEUGEOT, CITROEN |
| DAC25520043/45 | 25 | 52 | 43 | 45 | YES | ||
| DAC25550043 | 25 | 55 | 43 | 43 | YES | RENAULT | |
| DAC25550045 | 25 | 55 | 45 | 45 | YES | ||
| DAC255600206/29 | 633280 | 25 | 56 | 20.6 | 29 | NONE | FIAT |
| DAC25560032 | 445979/BAH5000 | 25 | 56 | 32 | 32 | YES | CITROEN |
| DAC256000206/29 | 633272 | 25 | 60 | 20.6 | 29 | NONE | FIAT |
| DAC25620028/17 | GB10827 | 25 | 62 | 28 | 17 | NONE | |
| DAC25650038 | 25 | 65 | 38 | 38 | YES | ||
| DAC25680043 | 25 | 68 | 43 | 43 | YES | ||
| DAC25680045 | 25 | 68 | 45 | 45 | YES | ||
| DAC25720043 | 25 | 72 | 43 | 43 | YES | ||
| DAC27520045 | 25 | 72 | 45 | 45 | YES | ||
| DAC27520045/43 | 801437/27KWD02 | 27 | 52 | 45 | 43 | NONE | NISSAN |
| DAC27520050 | 27 | 52 | 50 | 50 | YES | ||
| DAC27530043 | 27 | 53 | 43 | 43 | YES | ||
| DAC27600050 | FW120/27BWD01J | 27 | 60 | 50 | 50 | YES | NISSAN |
| DAC28580042 | 09267-28002 | 28 | 58 | 42 | 42 | YES | SUZUKI SUPER CARRY BUS/CARRY BOX |
| DAC28580044 | VKBA6975 | 28 | 58 | 44 | 44 | YES | SUZUKI SWIFT III |
| DAC29530037 | 801023AB | 29 | 53 | 37 | 37 | YES | |
| DAC30580042 | 30KWD01AG3 | 30 | 58 | 42 | 42 | YES | |
| DAC30600031 | 30 | 60 | 31 | 31 | YES | ||
| DAC30600037 | 30 | 60 | 37 | 37 | YES | FIAT, LADA, LANCIA, SEAT, VOLVO | |
| DAC30600337 | X044438800 | 30 | 60.03 | 37 | 37 | YES | FIAT/LADAMLANCIA/SEAT,VOLVO |
| DAC30620038 | 30BWD10 | 30 | 62 | 38 | 38 | YES | |
| DAC30630042 | 90369-30044 | 30 | 63 | 42 | 42 | YES | TOYOTA CAMRY CELICA/MR 2 |
| DAC30640042 | 30BWD03ACA78 | 30 | 64 | 42 | 42 | YES | |
| DAC30670024 | 361971 | 30 | 67 | 24 | 24 | YES | FORD |
| DAC30680045 | 30BWD04CA19 | 30 | 68 | 45 | 45 | YES | |

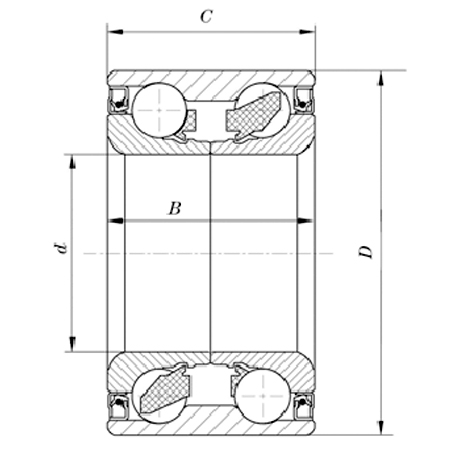

Diagram of d 20-30 mm Double Row Angular Contact Ball Bearings
