33200 Series Tapered Roller Bearings
Provide Professional High-quality Bearings for Over 70 Countries
Ensures high reliability in operation.
Provides excellent shock load resistance.
This metric tapered roller bearing is designed for high stiffness and running accuracy.
Specification
Specification of 33200 Series Tapered Roller Bearings
| Bearing type | Principal dimensions | Basic load ratings | Reference weight(kg) | ||||||||
| New | Original | (mm) | (KN) | (KN) | |||||||
| Type | Type | d | D | T | B | C | R | r | Cr | Cor | W |
| 33206 | 3007206 | 30 | 62 | 25 | 25 | 19.5 | 1 | 1 | 63.8 | 75.4 | 0.342 |
| 33207 | 3007207 | 35 | 72 | 28 | 28 | 22 | 1.5 | 1.5 | 82.6 | 101.7 | 0.515 |
| 33208 | 3007208 | 40 | 80 | 32 | 32 | 25 | 1.5 | 1.5 | 105.8 | 135.5 | 0.715 |
| 33209 | 3007209 | 45 | 85 | 32 | 32 | 25 | 1.5 | 1.5 | 109.5 | 145.1 | 0.771 |
| 33210 | 3007210 | 50 | 90 | 32 | 32 | 24.5 | 1.5 | 1.5 | 112.9 | 154.6 | 0.825 |
| 33211 | 3007211 | 55 | 100 | 35 | 35 | 27 | 2 | 1.5 | 143.1 | 196.7 | 1.15 |
| 33212 | 3007212 | 60 | 110 | 38 | 38 | 29 | 2 | 1.5 | 165.8 | 231.4 | 1.51 |
| 33213 | 3007213 | 65 | 120 | 41 | 41 | 32 | 2 | 1.5 | 202.2 | 281.6 | 1.99 |
| 33214 | 3007214 | 70 | 125 | 41 | 41 | 32 | 2 | 1.5 | 208.6 | 298.3 | 2.100 |
| 33215 | 3007215 | 75 | 130 | 41 | 41 | 31 | 2.0 | 1.5 | 207.1 | 299.7 | 2.17 |
| 33216 | 3007216 | 80 | 140 | 46 | 46 | 35 | 2.5 | 2 | 245.7 | 361.8 | 2.83 |
| 33217 | 3007217 | 85 | 150 | 49 | 49 | 37 | 2.5 | 2 | 281.7 | 415.7 | 3.52 |
| 33218 | 3007218 | 90 | 160 | 55 | 55 | 42 | 2.5 | 2.0 | 330.6 | 499.7 | 4.55 |
| 33219 | 3007219 | 95 | 170 | 58 | 58 | 44 | 3.0 | 2.5 | 377.4 | 568.4 | 5.48 |
| 33220 | 3007220 | 100 | 180 | 63 | 63 | 48 | 3.0 | 2.5 | 436.5 | 666.2 | 6.71 |
| 33221 | 3007221 | 105 | 190 | 68 | 68 | 52 | 3 | 2.5 | 497.8 | 770.5 | 8.12 |
| 6-7805Y | 26 | 57.15 | 17.462 | 17.462 | 14 | 3.2 | 1.5 | 41.1 | 47.6 | 0.222 | |
| 6-7804Y | 19.050 | 45.234 | 15.494 | 16.637 | / | / | / | / | / | 0.12 | |
| 30309X2B | 27709E | 45 | 100 | 32 | 29 | 20 | 1.5 | 1.5 | 63 | 83 | 1.04 |
| 306/47 | 7909 | 47 | 100 | 43 | 43 | 37 | 2 | 1.5 | 108 | 169 | 1.66 |
| 3002 | 55 | 130 | 36 | 33 | 22 | 3 | 2.5 | 171 | 185.6 | 2.115 | |
| 462/453X | 7911 | 57.15 | 104.775 | 30.162 | 29.317 | 24.605 | 2.3 | 3.3 | 109 | 144 | 1.043 |
| 33113X2 | 7813E | 65 | 110 | 30.5 | 30 | 24 | 3 | 2 | 126 | 185 | 1.14 |
| 30613 | 7713E | 65 | 1 50 | 54 | 54 | 44.5 | 3 | 3 | 269 | 390 | 4.432 |
| 33114X2 | 7814E | 70 | 120 | 33 | 33 | 27 | 2 | 1.5 | 152 | 209 | 1.43 |
| 30615 | 7815E | 75 | 135 | 44.5 | 45 | 36.5 | 2 | 2 | 235.1 | 349.9 | 2.694 |
| 33216X2 | 7816E | 80 | 140 | 45 | 45 | 36.5 | 2.5 | 2 | 246 | 366 | 2.743 |

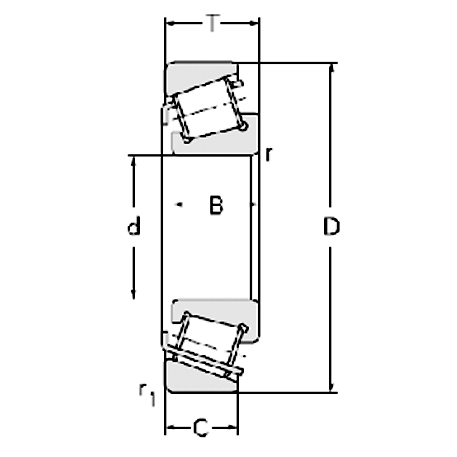

Diagram
Diagram of 33200 Series Tapered Roller Bearings
